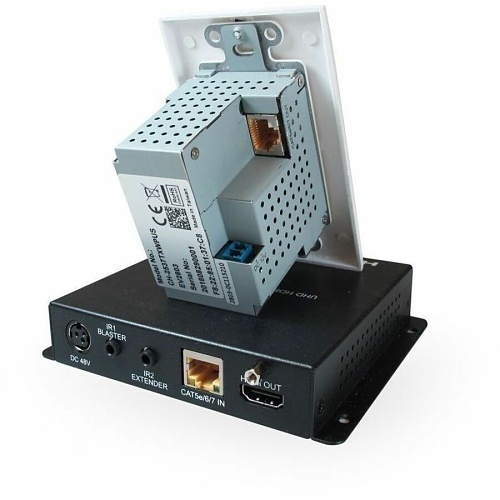

Comprehensive CHE-HDBTWP110K Pro AV/IT HDBaseT 4K60 18G Single Gang Wall Plate Extender Kit up to 230'
CHE-HDBTWP110K|RH-CHEHP110K
Comprehensive CHE-HDBTWP110K Pro AV/IT HDBaseT 4K60 18G Single Gang Wall Plate Extender Kit up to 230'
CHE-HDBTWP110K|RH-CHEHP110K
Comprehensive
Comprehensive CHE-HDBTWP110K Pro AV/IT HDBaseT 4K60 18G Single Gang Wall Plate Extender Kit up to 230'
CHE-HDBTWP110K | RH-CHEHP110K
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
HDMI 2.0 and HDCP 2.2 compliant
Main Features
- HDMI 2.0 and HDCP 2.2 compliant
- HDMI, VGA with 3.5 mm mini-jack audio input
- Wall plate is designed for US one-gang sized enclosures
- Supports HDMI input resolutions up to 4K@60Hz (4:4:4, 8-bit)
- Supports VGA input resolutions up to 1920 x 1200
- Analog stereo audio may be embedded with VGA or HDMI source
- HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) with automatic color space conversion of 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources
- Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable at 1080p/60 and 70m/230ft at 4K
- Supports CEC bypass
- User activated information OSD
General Information
Name: Comprehensive CHE-HDBTWP110K Pro AV/IT HDBaseT 4K60 18G Single Gang Wall Plate Extender Kit up to 230'
Category: Comprehensive, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code: 808447081756
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number RH-CHEHP110K Brand Name Comprehensive Manufacturer Comprehensive Connectivity Company Manufacturer Part Number CHE-HDBTWP110K Product Model CHE-HDBTWP110K Product Name IR Transmitter Kit Product Type IR Transmitter Kit
TAA Compliant Yes
Color Black Dimensions - 2.8" Height x 4.9" Width x 1.8" Depth
Weight 0.45 lb
Limited Warranty 3-Year
Environmentally Friendly Yes Package Contents - 1 x HDMI over HDBaseT Wallplate Transmitter
- 1 x HDMI over HDBaseT Receiver
- 1 x Single-Gang faceplate
- 2 x Faceplate screws
- 1 x 2-pin Terminal Block
- 1 x IR Blast Cable
- and more below
