Image of RH-CHEHDBTW1
Shop all Comprehensive

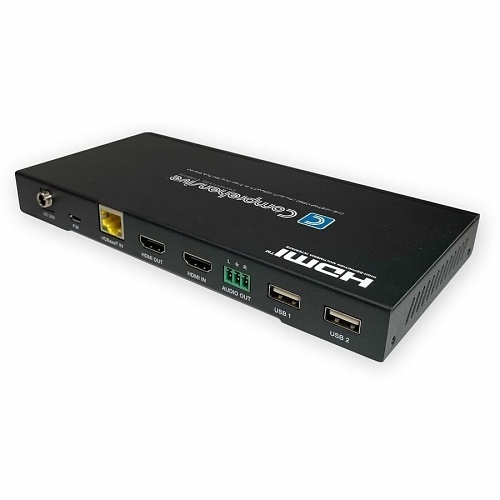

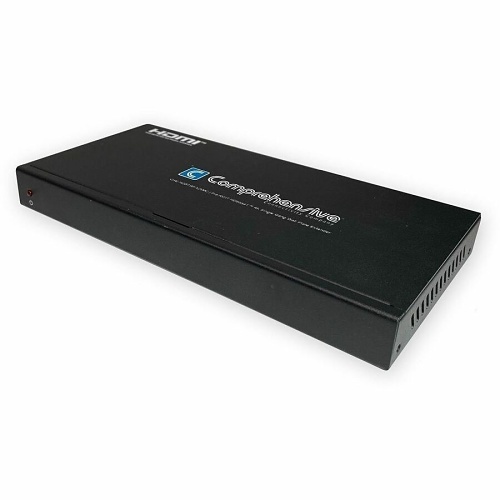

Comprehensive CHE-HDBTWP125MC Pro AV/IT HDBaseT 4K60 HDMI, USB-C, USB 2.0, Wall Plate Extender 230ft

CHE-HDBTWP125MC|RH-CHEHDBTW1
Shop all Comprehensive

Comprehensive CHE-HDBTWP125MC Pro AV/IT HDBaseT 4K60 HDMI, USB-C, USB 2.0, Wall Plate Extender 230ft

CHE-HDBTWP125MC|RH-CHEHDBTW1

Sign In for Dealer Pricing

Become an ADI Customer
Image of RH-CHEHDBTW1
Comprehensive

Comprehensive CHE-HDBTWP125MC Pro AV/IT HDBaseT 4K60 HDMI, USB-C, USB 2.0, Wall Plate Extender 230ft

CHE-HDBTWP125MC | RH-CHEHDBTW1

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

USB-C AV Input

Main Features

  • Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
  • Supports 18 Gbps video bandwidth
  • Video resolutions up to 4Kat60Hz 4:4:4
  • HDBaseT® output can extend video transmission distance up to 230ft / 70m for 1080P or 131ft / 40m for 4K via a single cat5e/6/7 cable
  • Supports HDR10 and HDR10+
  • Audio formats support Dolby® Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
  • Supports HDMI and USB-C input

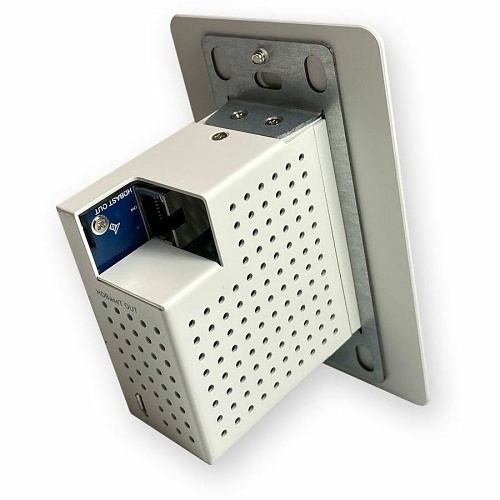

  • US one-gang housing for Decora-style wall plate openings
  • Input selection supports automatic mode and manual mode
  • USB2.0 extension with Receiver

General Information

Name: Comprehensive CHE-HDBTWP125MC Pro AV/IT HDBaseT 4K60 HDMI, USB-C, USB 2.0, Wall Plate Extender 230ft
Category: Comprehensive, Pro AV, Commercial Video Conferencing, Video Conference Interface Units
UPC Code: 808447082616
Country of Origin: China. Country of origin is subject to change.

Specifications
