Comprehensive CAT6PSHBLU-1000R CAT6 Shielded Plenum Solid Bulk Cable, 1000' Reel, Blue

CAT6PSHBLU-1000R | RH-C6SHBLU1R

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

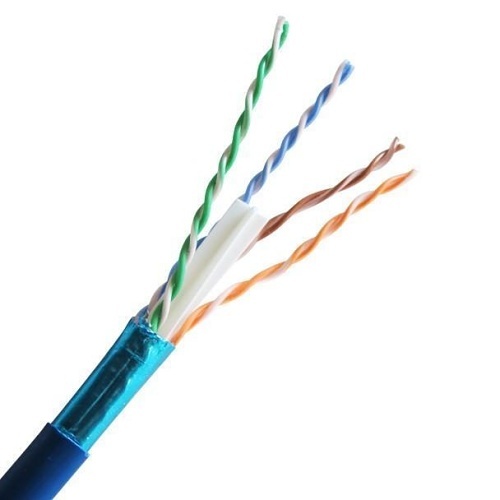

Comprehensive Category 6 550MHz plenum shielded local area network cable utilizes 4 twisted pairs, an overall shield, plenum jacket, and solid 23 awg construction. Comprehensive Cat6 550Mhz plenum shielded bulk cable is ideal for your network installation Category 6 Shielded 550MHz Plenum cable. Supports all category 6 applications including Ethernet 100BASE -TX, 100BASE-VG and 155 ATM. Particularly suited for high bandwidth applications such as 622 ATM, Wideband, Ethernet 1000BASE-T and emerging applications with anticipated data rates to 3.2 Gbps. No. 23 AWG solid bare copper conductor insulated with FEP. Two colored mated insulated conductors twisted together to form a pair and four pairs assembled around a pair separator to form a core. The core is overall shielded and jacketed with a low smoke flame retardant PVC. Available in Blue, White, and Black color jackets. Foot-marked cable is packaged on wooden reels. This 23AWG bulk cable specifically uses our connector (Sold Separately).

Main Features

  • High-Performance Data Communications Cable for Noisy Environments
  • Suitable for 550MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
  • Category-6 Shielded Twisted Pair (FTP) Plenum Cable
  • 4-Pair - Easily Identified Color-Striped Pairs
  • 23AWG Solid Bare Copper Conductors
  • Excellent Attenuation and Crosstalk Characteristics
  • Exceeds EIA/TIA 568 B.2-1, UL, CSA and ISO/IEC 11801 specifications
  • CMP/FT6 rated for use in walls and in ceiling
  • UL/cUL or ETL Listed
  • Sequential foot markers

General Information

Name: Comprehensive CAT6PSHBLU-1000R CAT6 Shielded Plenum Solid Bulk Cable, 1000' Reel, Blue
Category: Comprehensive, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code: 808447068375
Country of Origin: United States. Country of origin is subject to change.
