Quiktron C2G31012 HDMI HDBaseT and VGA, USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver

C2G31012 | QR-C2G31012

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

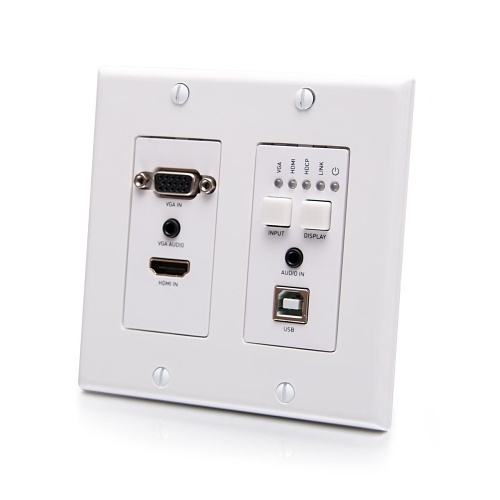

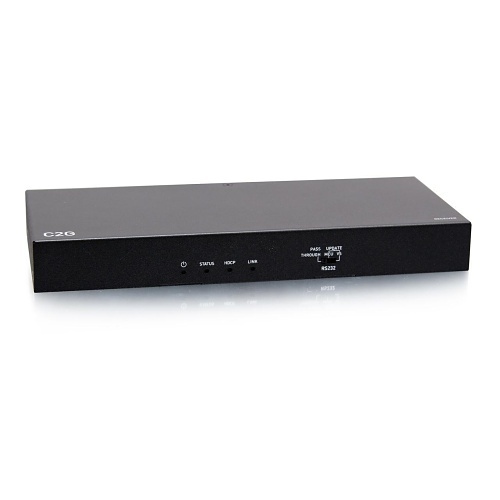

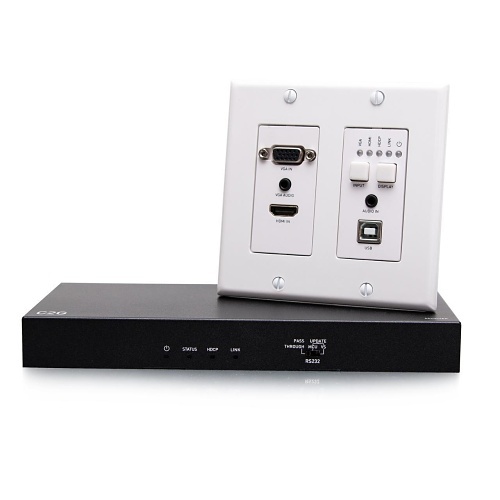

The HDMI HDBaseT VGA, 3.5mm, and USB-B to A over Cat Extender Dual Gang Wall Plate Transmitter to Box Receiver 4K 60Hz allows a 4K HDMI source to be extended up to 130' to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.The transmitter extends HDMI, VGA, Stereo Audio, and high speed USB 2.0 signals over a single Cat5e, Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115' and 1080p VGA up to 230' using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130' using a Cat6a cable.This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. Automatic switching is supported by the transmitter, connecting to the last active source. One-way analog audio pass through is supported from the transmitter to the receiver. High-speed USB 2.0 pass through is supported over HDBaseT up to 230' for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH support, the receiver can send power to the wall plate transmitter, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro USB port on front panel of the wall plate transmitter, and upgrade the firmware through the RS232 port on rear panel of the receiver.This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. Automatic switching is supported by the transmitter, connecting to the last active source. One way analog audio pass through is supported from the transmitter to the receiver. High-speed USB 2.0 pass through is supported over HDBaseT up to 230' for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH support, the receiver can send power to the wall plate transmitter, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro USB port on front panel of the wall plate transmitter, and upgrade the firmware through the RS232 port on rear panel of the receiver.

Main Features

  • Extend 4K at 60Hz up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
  • Supports CEC switch command sent by wall-plate

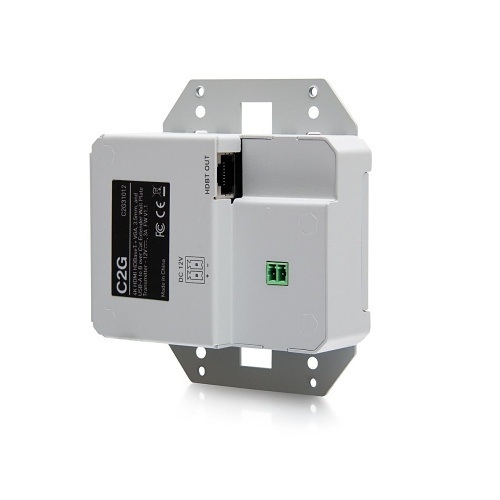

  • One-way Power over HDBaseT (PoH), so that the wall plate can be powered by receiver
  • The transmitter supports firmware upgrade and device control via the Micro USB port
  • HDBaseT Chipset VS210, for simpler HDBaseT installations
  • The Transmitter supports automatic switching, following the last-in-first-out rule
  • One-way analog audio pass through from wall-plate transmitter to receiver

General Information

Name: Quiktron C2G31012 HDMI HDBaseT and VGA, USB-B to A over Cat Extender Wall Plate Transmitter to Box Receiver
Category: Quiktron by Legrand, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Extenders, Pro HDMI Extenders
UPC Code: 757120310129
Country of Origin: China. Country of origin is subject to change.
