QSC

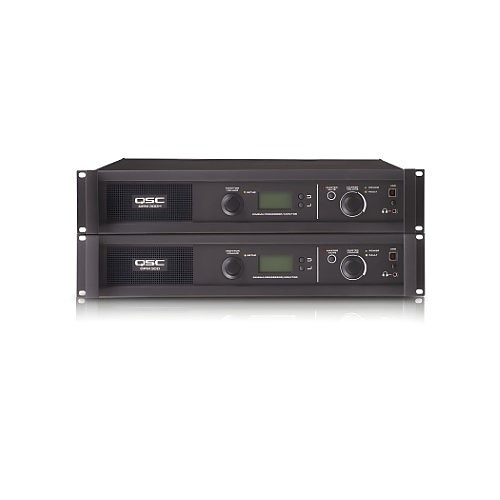

QSC DPM-300H Audio Processor
DPM-300H | QB-DPM300H
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The DPM builds on the legacy of QSC’s DCM and DCP products to provide all signal processing and monitoring functions for Digital Cinema in a single integrated system. Designed to be used with QSC’s Digital Cinema Amplifiers (DCA) and featuring advanced Intrinsic Correction settings for QSC’s Digital Cinema Speakers (DCS), the DPM optimizes loudspeaker performance while simplifying cinema sound system wiring and configuration. The DPM 300 is configurable for passive, bi-amp, tri-amp and quad-amp operation and 2 or 4 surround channels (5.1 or 7.1).
Main Features
- Ten digital inputs for 5.1 and 7.1 soundtracks and HI/VI
- HDMI input/output for non-sync sources (DPM 300H)
- Dolbsy Digital Plus and DTS-HD (DPM 300H)
- Control and monitoring via Ethernet including full SNMP support
- Serial automation control via RS-232
- Analog Inputs for film processors, non-sync and Mic/Line
- Master volume and full 1/3 Octave Graphic EQ on all channels (except subwoofer)
- Booth Monitor loudspeaker and headphone jack
- Digital Loudspeaker Crossovers - three passive bi-, tri-, or quad-amp screen channels
- Compatible with all existing DCA amplifiers — thousands of DCA-equipped screens are ready for full network monitoring and control
General Information
Name: QSC DPM-300H Audio Processor
Category: QSC, Pro AV, Commercial Audio, Pro Audio Processors
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number QB-DPM300H Brand Name QSC Manufacturer QSC Manufacturer Part Number DPM-300H Product Model DPM-300H Product Name DPM 300H Digital Processor/Monitor/Crossover Product Series DPM Product Type Digital Processor
Depth 15" Height 3.5" Width 19"
Input Voltage 100-240V AC Power Source AC
