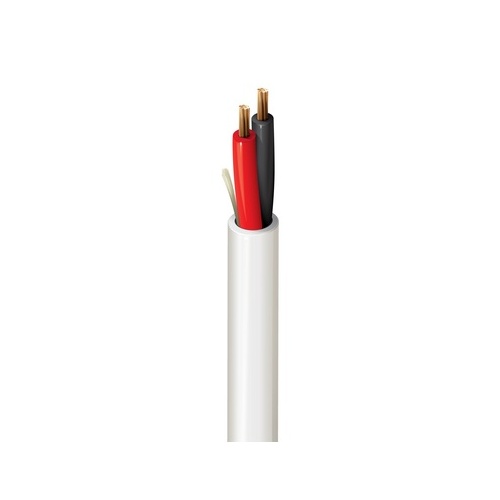

Belden 6300UE 877U1000 18/2 Multi-Conductor Commercial Audio System Cable, Natural
6300UE 877U1000|Q3-6300UE87U
Belden 6300UE 877U1000 18/2 Multi-Conductor Commercial Audio System Cable, Natural
6300UE 877U1000|Q3-6300UE87U
Belden
Belden 6300UE 877U1000 18/2 Multi-Conductor Commercial Audio System Cable, Natural
6300UE 877U1000 | Q3-6300UE87U
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Security & Commercial Audio Cable, 2 Conductor 18 AWG stranded (7x26) bare copper conductors with Flamarrest® insulation, Plenum-CMP, Flamarrest® jacket with ripcord
Main Features
- Offers exceptional connection and upright compatibility with audio equipment
- Stranded feature for your convenience and ease of usage
- Audio Device device supported according to your requirements with maximum productivity
General Information
Name: Belden 6300UE 877U1000 18/2 Multi-Conductor Commercial Audio System Cable, Natural
Category: Belden, Wire & Cable, Speaker Cables, Security & Access Control Cables, Plenum Audio Cables, Plenum Unshielded Cables
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number Q3-6300UE87U Brand Name Belden Manufacturer Belden CDT, Inc Manufacturer Part Number 6300UE877U1000 Packaged Quantity 305 Product Name Security & Sound, 2 Conductor 18 AWG BC, CMP Product Type Audio Cable
American Wire Gauge 18AWG Cable Rating Plenum Conductor Count 2 Conductor Material Bare Copper Device Supported Audio Device, Audio System, Intercom, Public Address System, Sound System Jacket Material PVC-LS Material Bare Copper, Foam Fluorinated Ethylene Propylene (FFEP), Low Smoke Polyvinyl Chloride (LS PVC) Number of Conductors 2 Number of Pairs 1 Shielding No Solid or Stranded Stranded
Operating Temperature (T-T) 167°F
Cable Length 1000' Color Clear Insulation Material PVC-LS Package Type UnReel
Length 1000'
Environmental Certification CEC, China RoHS 2, EU RoHS, EU WEEE, RoHS 2 Environmentally Friendly Yes Features Bendable, Stranded Indoor/Outdoor Indoor
