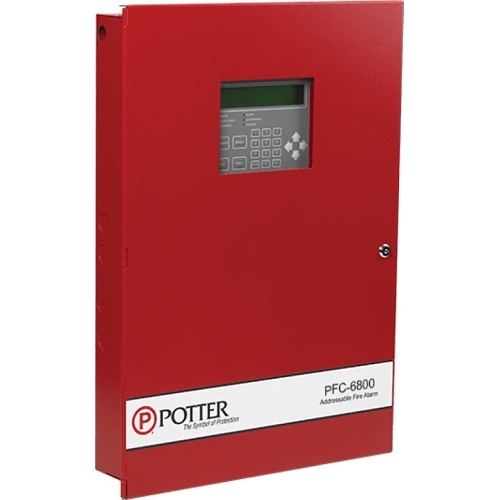

Potter PFC-6800 Fire Alarm Control Panel, 127-Points Expandable to 1016
Potter PFC-6800 Fire Alarm Control Panel, 127-Points Expandable to 1016
Potter PFC-6800 Fire Alarm Control Panel, 127-Points Expandable to 1016
PFC-6800 | PL-PFC6800
Please sign in to view pricing and availability and to add to cart.
Product Overview
The PFC-6800 is a single loop expandable to eight loop analog/addressable fire alarm control panel. The panel utilizes the Potter/Nohmi device protocol that has a complete line of initiating and control devices. The SLC is capable of 50 ohms of resistance and does not require the use of twisted or shielded wire. The on board Signaling Line Circuit (SLC) supports 127 of any combination of smoke sensors, heat detectors or modules. Up to six additional SLC cards may be added in the control panel. Some or all of the SLC cards may be remotely installed to provide an additional 127 points bringing the total system capacity to 1,016 points.
Main Features
- 127 points expandable to 1,016 by use of seven SLCE cards
- 10 Amp Power Supply
- 6 NACs regulated, rated at 3 amps each
- 4 multifunctional input/output (I/O) circuits for flexibility rated at 1 amp each
- Strobe synchronization for Potter/AMSECO®, Gentex®, Cooper/ Wheelock® and System Sensor®
- 1,500 Software zones for versatile installation options
- 4 x 40 LCD and keypad for ease of operation
- Dual P-Link communication circuits for annunciation and accessories
- Optional dual line digital alarm communicator reports by panel zone or point ID
- Ethernet port for programming, reporting and network connectivity
General Information
Specifications
ADI Part Number PL-PFC6800 Brand Name Potter Electric Signal, LLC Manufacturer Part Number PFC-6800
Ethernet Yes
Depth 3" Height 26" Width 17"
Input Voltage 120V AC, 240V AC
Limited Warranty 5 Year
