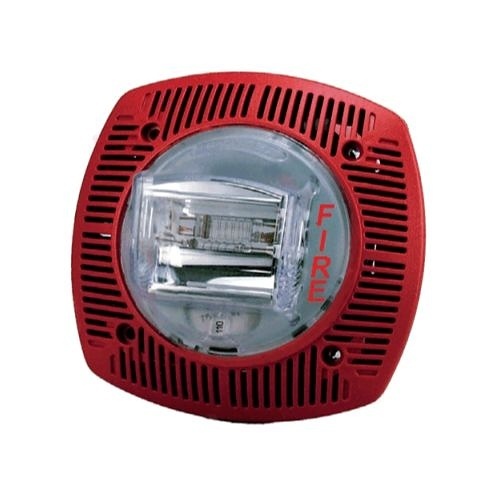

Potter WSSPK24-15/75WR WSSPK Series Outdoor Speaker/Strobe, FIRE Text, Red
Potter WSSPK24-15/75WR WSSPK Series Outdoor Speaker/Strobe, FIRE Text, Red
Potter WSSPK24-15/75WR WSSPK Series Outdoor Speaker/Strobe, FIRE Text, Red
WSSPK24-15/75WR | PL-4890206
Please sign in to view pricing and availability and to add to cart.
Product Overview
The WSSPK Series provides a 25 or 70.7 VRMs speaker with field selectable power taps of 1/8W, 1/4W, 1/2W, 1W, 2W, or 4W. The WSSPK24-15/75 provides a fixed 15/75 candela strobe output. The strobe can be synchronized using the Potter AVSM Synchronization Control Module, FACP, or power supplies that produce a Gentex Synchronization Protocol.
The WSSPK Series grills are constructed of high impact textured plastic. Included with the WSSPK Series speaker and speaker/strobe is the GBLP outdoor listed back box. Using the GBLP back box with the WSSPK Series provides protection from weather related conditions and allows the necessary full candela output.
Main Features
- 24V DC fixed 15/75 candela
- WSSPK series shipped with Gentex GBLP outdoor back box
- Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
- High quality dBA output (intelligible)
- Frequency range 400-4000 Hz
- Screw terminals, separate in/out wiring (18-12 gauge)
- Tamperproof grill
- Speaker voltage 25 or 70.7 VRMS standard, field selectable
- Faceplate available in red or off-white
- Strobe synchronization with Potter AVSM module
General Information
Specifications
ADI Part Number PL-4890206 Brand Name Potter Electric Signal, LLC Manufacturer Potter Electric Signal, LLC Manufacturer Part Number 4890206 Product Model WSSPK24-15/75WR Product Name WSSPK24-15/75WR Speaker Strobe Product Series WSSPK Product Type Speaker Strobe
Alarm Type Audible, Visual Application/Usage Evacuation, Outdoor Connectivity Technology Wired
Sound Emission 87 dB
Color Red Depth 4.1" Durability Tamperproof, Weatherproof Form Factor Box Mount, Wall Mount Height 6.1" Lens Color Clear Width 6.1"
Input Voltage 33V DC Power Source DC
Mount Type Wall Mount
Limited Warranty 5-Year
Indoor/Outdoor Outdoor Package Contents - WSSPK24-15/75WR Speaker Strobe
- Gentex GBLP Outdoor Back Box
