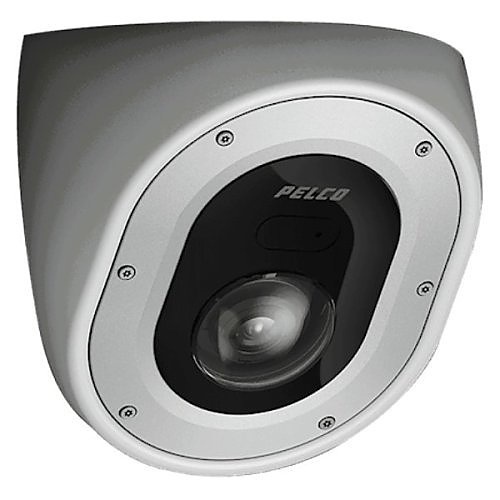

Pelco IBD532-1 5MP Indoor/Outdoor IR Corner Camera, 2.3mm Fixed Lens, White
IBD532-1|PE-IBD5321
Pelco IBD532-1 5MP Indoor/Outdoor IR Corner Camera, 2.3mm Fixed Lens, White
IBD532-1|PE-IBD5321
Pelco by Motorola Solutions
Pelco IBD532-1 5MP Indoor/Outdoor IR Corner Camera, 2.3mm Fixed Lens, White
IBD532-1 | PE-IBD5321
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Sarix Corner Camera3 Series is a vandal-resistant fixedIPcamera solution delivering comprehensive video coverage of small to medium areas. With anIK10+50-joule impact rating and steel construction, it is ideal for environments where there is a risk of tampering or destruction.
- Wide field of view fixed lens
- H.264, H.265Pelco Smart Compression, and SureVision technologies
- Smart Analytics, powered by Motorola Solutions
- IK10+ impact rating for vandal resistance
- IP66andIP67rating for water resistance
- Reduces bandwidth and storage needs
- Five-year warranty with service and support
- Records between -40 °C - 55 °C
- ONVIFProfile S, G and T compliant
- Records audio via a built-in microphone
- Captures detail in bright and dark areas
Main Features
- Wide field of view fixed lens
- H.264, H.265 Pelco Smart Compression and SureVision technologies
- Smart Analytics, powered by Motorola Solutions
- IK10+ impact rating for vandal resistance
- IP66 and IP67 ratings for water resistance
- NEMA 4X rating, including protection against windblown dust and water (Stainless Steel Variant Only)
- Stainless Steel and Cold Rolled Steel variants
- ONVIF Profile S, G and T compliance
- Audio recording capability with a built-in microphone
General Information
Name: Pelco IBD532-1 5MP Indoor/Outdoor IR Corner Camera, 2.3mm Fixed Lens, White
Category: Pelco by Motorola Solutions, Video Surveillance, IP Cameras, Dome Cameras, ADI Pro Rewards
UPC Code: 700880367469
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number PE-IBD5321 Brand Name Pelco by Motorola Solutions Manufacturer Schneider Electric SA Manufacturer Part Number IBD532-1 Product Line Sarix Product Model IBD532-1 Product Name Sarix Corner Mount Camera 3 Series Product Series 3 Product Type Network Camera Weight 7.08lb
Connectivity Technology Wired Field of View 135° 133° 95° 74° Lens Type Fixed Maximum Aperture f/2.2 Maximum Frame Rate 30fps Minimum Focal Length 2.3mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 49.21 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67
Maximum Video Resolution 2592 x 1944
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.95
Longest Shutter Speed 1/7 Second Shortest Shutter Speed 1/8196 Second
Network (RJ-45) Yes
Lens Included Yes Maximum Focal Length 2.3 mm
Remote Management Yes
Color Silver Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof Height 4.8" Width 6.4"
Input Voltage 12V DC, 24V AC
Length 6.4" Mount Type Corner Mount
Storage Type Memory Card
Maximum Resolution 1280 x 720
Limited Warranty 5-Year
Country of Origin US Environmental Certification REACH, RoHS Environmentally Friendly Yes Features 3D Noise Reduction, Audio Compression, Automatic White Balance, Back Light Compensation (BLC), Built-in Microphone, Day/Night, Motion Detection, Multi-view Stream, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Indoor
