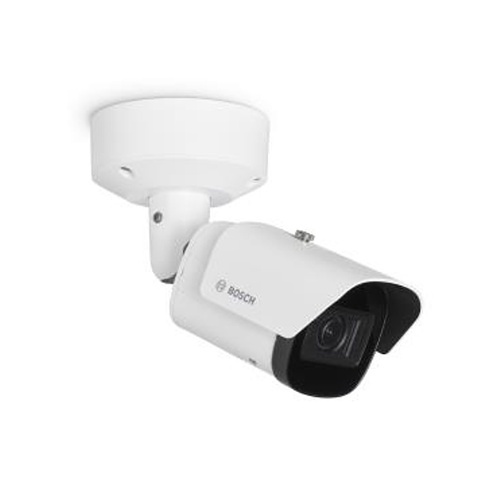

Bosch NBE-5704-AL-GOV 8MP Bullet Camera, 3.2-10.5mm Varifocal Lens, HDR, IP66 IP67 GOV, White
NBE-5704-AL-GOV|PB-NB574ALGV
Bosch NBE-5704-AL-GOV 8MP Bullet Camera, 3.2-10.5mm Varifocal Lens, HDR, IP66 IP67 GOV, White
NBE-5704-AL-GOV|PB-NB574ALGV
Bosch
Bosch NBE-5704-AL-GOV 8MP Bullet Camera, 3.2-10.5mm Varifocal Lens, HDR, IP66 IP67 GOV, White
NBE-5704-AL-GOV | PB-NB574ALGV
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The camera is a versatile and professional surveillance camera for outdoor monitoring. It offers a 1/2.8'' sensor and HDR technology at 4K ultra HD resolution with a built-in intelligent infrared illuminator that provides high performance in dark environments. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts. The robust design and stable housing with sunshield prevent overexposure in certain periods of the day and help to provide optimal image stability.
Main Features
- 4K ultra HD for highly detailed images
- Starlight camera technology with excellent low-light performance
- IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- High Dynamic Range to see every detail in both bright and dark areas of the scene
- Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
- NDAA and TAA compliant
General Information
Name: Bosch NBE-5704-AL-GOV 8MP Bullet Camera, 3.2-10.5mm Varifocal Lens, HDR, IP66 IP67 GOV, White
Category: Bosch, Video Surveillance, IP Cameras, Bullet Cameras
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number PB-NB574ALGV Brand Name Bosch Manufacturer The Bosch Group Manufacturer Part Number NBE5704ALGOV Product Line DINION Product Model NBE-5704-AL-GOV Product Name Dinion 5100i NBE-5704-AL-GOV Network Camera Product Series 5100i Product Type Network Camera Weight 5.51lb
Connectivity Technology Wired Field of View Horizontal: 105° - 31°, Vertical: 57° - 18° Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 3.2mm Night Vision Yes Night Vision Type Infrared Optical Zoom 3.2x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 147.64 ft
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
Maximum Video Resolution 3864 x 2192
Maximum Operating Temperature 131°F (55°C) Minimum Operating Temperature -40°F (-40°C) Operating Humidity 0.93
Network (RJ-45) Yes
Lens Included Yes Maximum Focal Length 10.50 mm
Remote Management Yes
Color White Durability Dust Resistant, Impact Resistant, Rain Resistant, Vandal Resistant, Waterproof Height 3.8"
Input Voltage 12V DC, 24V AC
Diameter 5.8"
Recording Formats 4K Storage Type Memory Card
Maximum Resolution 1280 x 720
Country of Origin PT Environmental Certification EU RoHS, EU WEEE Environmentally Friendly Yes Features Alarm Triggering, Back Light Compensation (BLC), Built-in IR LED, Built-in Microphone, Day/Night, Human Detection, Privacy Masking, Vehicle Detection, White Balance Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents - 1 x NBE-5704-AL camera
- 1 x Mounting plate
- 1 x Secure screw (pre-installed in the camera)
- 2 x Grommets (pre-installed in the camera's bottom cover)
- 1 x TR20 Allen Key
- and more below
