Panduit LCC6-14A-L Compression Connector Lug, 2-Hole, #6AWG, Copper
LCC6-14A-L|P9-LCC614AL
Panduit LCC6-14A-L Compression Connector Lug, 2-Hole, #6AWG, Copper
LCC6-14A-L|P9-LCC614AL
Panduit
Panduit LCC6-14A-L Compression Connector Lug, 2-Hole, #6AWG, Copper
LCC6-14A-L | P9-LCC614AL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

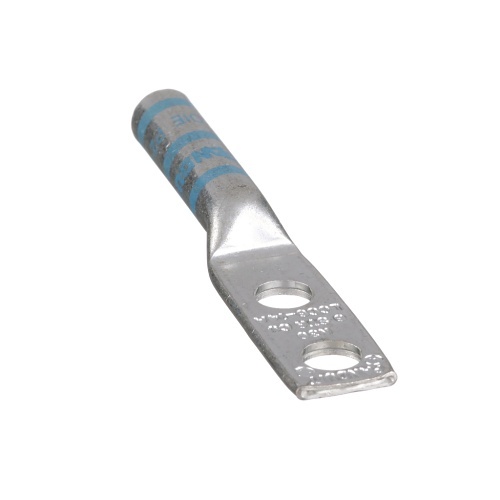

Two-hole, long barrel lug, #6 AWG wire, 1/4" stud hole, .63" hole spacing.
Main Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrelwhen used in harsh environments
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV** and temperature rated to 90°C when crimped with Panduit and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with Panduit® Uni-Die™ Dieless Crimping Tools?
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping approved
- Available with NEMA hole sizes and spacing
General Information
Name: Panduit LCC6-14A-L Compression Connector Lug, 2-Hole, #6AWG, Copper
Category: Panduit, Batteries & Power Supplies, Power Management, Grounding & Bonding
UPC Code: 074983382569
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-LCC614AL Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LCC6-14A-L Product Name Terminal Connector Product Type Terminal Connector
Color Blue Width 0.5"
Length 2.6"
Country of Origin MX Environmentally Friendly Yes Features Corrosion Resistant
