Lantronix SM48TAT4XA-RP-SA 48-Port Gigabit POE+ Switch with (4) 1G/10G SFP+, Single
SM48TAT4XA-RP|P6-SM8XARPSA
Lantronix SM48TAT4XA-RP-SA 48-Port Gigabit POE+ Switch with (4) 1G/10G SFP+, Single
SM48TAT4XA-RP|P6-SM8XARPSA
Lantronix
Lantronix SM48TAT4XA-RP-SA 48-Port Gigabit POE+ Switch with (4) 1G/10G SFP+, Single
SM48TAT4XA-RP | P6-SM8XARPSA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Managed Gigabit Ethernet PoE+ Switch
(48) 10/100/1000Base-T Ports + (4) 1G/10GBase-X SFP+ Ports

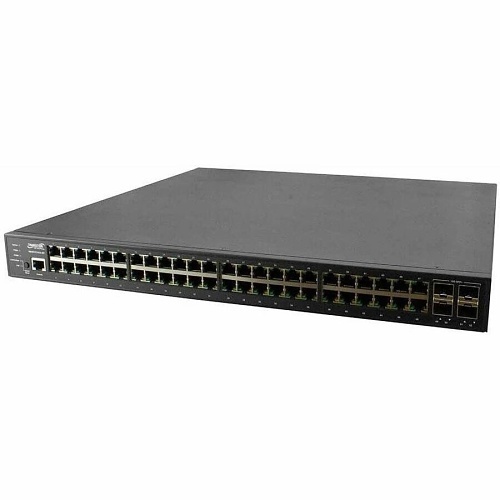

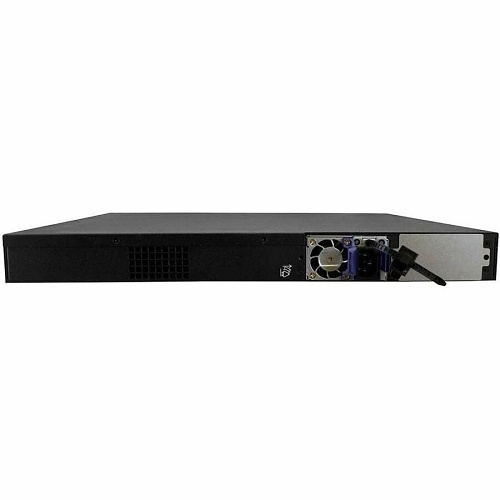

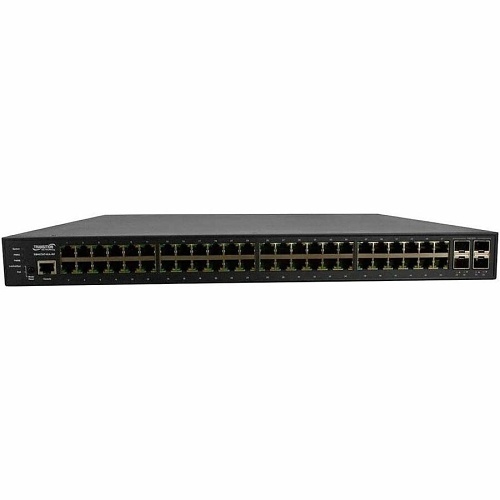

This switch is a high performance managed PoE+ switch with (48) 10/100/1000 copper ports and (4) dual speed 1G/10G SFP+ slots.
Main Features
- Supports Jumbo Frame up to 10240 bytes
- Authentication - RADIUS IEEE 802.1X, TACACS+
- Security - Support SSH/SSL
- Port security: MAC addresses to ports
- Port based or tagged (IEEE 802.1Q) VLAN, MAC based VLAN, Management VLAN and Private VLAN Edge
- DHCP Server, Client, Relay
- IEEE 1588v2 PTP (TC)
- ACLs Support for up to 512 entries, drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, DSCP/IP precedence, TCP/IP source and destination ports, IEEE 802.1p priority, Ethernet Type / IGMP packets, TCP flag
- LLDP (Link Layer Discovery Protocol)
- IEEE 802.3az Energy Efficiency
General Information
Name: Lantronix SM48TAT4XA-RP-SA 48-Port Gigabit POE+ Switch with (4) 1G/10G SFP+, Single
Category: Lantronix, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 783384251045
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SM8XARPSA Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SM48TAT4XARPSA Product Model SM48TAT4XA-RP Product Name SM48TAT4XA-RP Ethernet Switch Product Series SM48TAT4XA-RP Product Type Ethernet Switch
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 15.40W
Expansion Slot Type SFP+ Number of SFP+ Slots 4 Number of Total Expansion Slots 4 Shared SFP Slot No
Modular Yes Network (RJ-45) Yes Total Number of Network Ports 48
Manageable Yes
Network Technology 10/100/1000Base-T, 10GBase-X
Ethernet Technology 10 Gigabit Ethernet Layer Supported 3 Networking Standards IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Depth 14.8" Height 1.7" Width 17.4"
Input Voltage 100-240V AC PoE (RJ-45) Port Yes PoE Budget 820W Power Source PoE+, Power Supply
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Features Hot-swappable Package Contents SM48TAT4XA-RP Ethernet Switch1 x AC Power Supply1 x 19" Rack Mount BracketPower Cord South Africa
