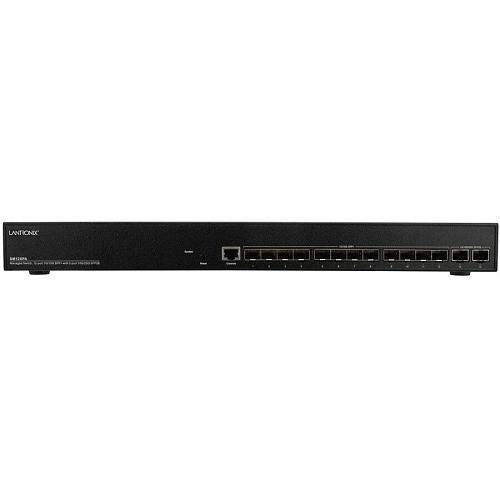

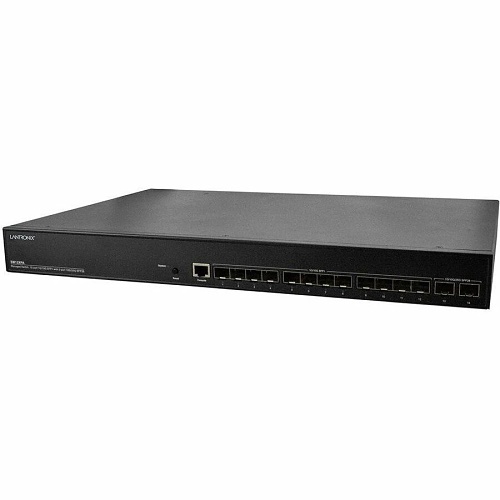

Lantronix SM12XPA-BR Managed Fiber Switch with 12-Port, Supporting 1G/10G SFP+, Brazil Power Cord
Lantronix SM12XPA-BR Managed Fiber Switch with 12-Port, Supporting 1G/10G SFP+, Brazil Power Cord
Lantronix SM12XPA-BR Managed Fiber Switch with 12-Port, Supporting 1G/10G SFP+, Brazil Power Cord
SM12XPA-BR | P6-SM12XPABR
Please sign in to view pricing and availability and to add to cart.
Product Overview
Easier management and maintenance of end devices and networks
The SM12XPA Fiber Aggregation Switch is a managed Layer 3 (L3) Multi-Gigabit Ethernet fiber switch offering powerful Layer 2 and basic Layer 3 features for improved functionality.
Move More Data: Reduce Backbone InfrastructureThe SM12XPA switch provides 340 Gbps switching capacity with (12) 1G/10G SFP+ and (2) 1G/10G/25G SFP28 slots and (1) RJ-45 console port. It offers high performance and reliability for high bandwidth aggregation and access network applications. The 10G and 25G SFP links provide the necessary backbone capacity to meet the high traffic needs of modern connected access switches.
Rapid Network ConversionHigh performance IP unicast routing using OSPF and RIP enables devices to dynamically learn and exchange routing information for rapid network convergence. This improves efficiency and productivity.
Smart Device ManagementThe embedded Device Managed System (DMS) software is easy to use and simplifies configuration, installation, and troubleshooting of devices in applications with high fiber density. The SM12XPA offers an improved user experience, and lowers operating and maintenance costs.
Security and Seamless IntegrationA RESTful API is available for integrating and managing the switch through third-party tools. It also supports enhanced security features such as IP source guard and Access Control Lists to guard networks against unauthorized access.
Main Features
- Supports Jumbo Frame up to 10K bytes
- Secondary hot-swappable AC power supply available (optional)
- Layer 2 Switching
- Spanning Tree (STP), Rapid Spanning Tree (RSTP), and Multiple Spanning Tree (MSTP)
- Link Aggregation Control Protocol (LACP)
- VLANs (supports up to 4K VLANs): Port based VLAN, IEEE 802.1Q tag-based VLAN, MAC-based VLAN, Management VLAN, Private VLAN Edge (PVE), Q-in-Q (double tag) VLAN, Voice VLAN, GARP VLAN Registration Protocol (GVRP)
- DHCP Relay
- IGMP v1.v2/v3 Snooping / IGMP Querier / IGMP Proxy
- MLD v1/v2 Snooping
- Layer 3 Switching
General Information
Specifications
ADI Part Number P6-SM12XPABR Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SM12XPABR Product Model SM12XPA-BR Product Name SM12XPA Layer 3 Switch Product Series SM12XPA Product Type Layer 3 Switch
Media Type Supported Optical Fiber, Twisted Pair
TAA Compliant Yes
Expansion Slot Type SFP+, SFP28 Number of SFP Slots 2 Number of SFP+ Slots 2 Number of Total Expansion Slots 14 Shared SFP Slot No
Total Number of Network Ports 15
Manageable Yes
Network Technology 1000Base-X, 10GBase-X, 25GBase-X
Ethernet Technology 25 Gigabit Ethernet Layer Supported 4 Networking Standards IEEE 802.1ad, IEEE 802.1D, IEEE 802.1x, IEEE 802.3
Depth 11.8" Height 1.7" Width 17.4"
Frequency 50 Hz, 60 Hz Input Voltage 120V AC, 230V AC Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Features Hot-swappable Package Contents SM12XPA Layer 3 SwitchPower Cord Brazil
