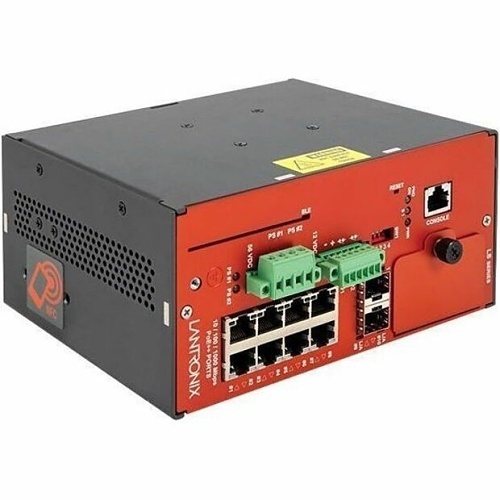

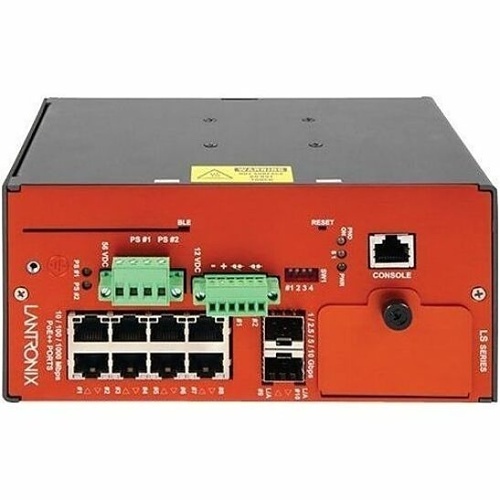

Lantronix LSS2200-8P LS Series Managed Layer 2+ Hardened Gigabit Ethernet PoE++ Switch
LSS2200-8P|P6-LSS22008P
Lantronix LSS2200-8P LS Series Managed Layer 2+ Hardened Gigabit Ethernet PoE++ Switch
LSS2200-8P|P6-LSS22008P
Lantronix
Lantronix LSS2200-8P LS Series Managed Layer 2+ Hardened Gigabit Ethernet PoE++ Switch
LSS2200-8P | P6-LSS22008P
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The LS Series offers a small footprint and hardened temperature rating plus cloud-based management making this new PoE++ switch ideal for IoT and IP devices throughout smart buildings or in rugged environments. The LSS2200-8P is a managed Layer 2+ Gigabit Ethernet switch offering (8) 1GBase-T interfaces with full IEEE 802.3bt 90W support, (2) 10/5/2.5/1GBase-T multi-gigabit SFP+ slots, (2) programmable Digital Input/Outputs with 12V power output, and (1) RJ-45 console port. The switch accepts simplified transfer of pre-configurations through the LSS2200-8P Mobile App using Near Field Communications (NFC) prior to power up or dispatch, saving valuable time at the installation site.
Main Features
- Secure Connectivity
- Full IEEE 802.3bt on all ports
- Small footprint / hardened temperature rating
- Special PoE features
- Expansion Port
General Information
Name: Lantronix LSS2200-8P LS Series Managed Layer 2+ Hardened Gigabit Ethernet PoE++ Switch
Category: Lantronix, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 783384255432
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
Specifications
ADI Part Number P6-LSS22008P Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number LSS2200-8P Product Model LSS2200-8P Product Name LS LSS2200-8P Ethernet Switch Product Series LS Product Type Ethernet Switch
Media Type Supported Optical Fiber, Twisted Pair Network Switch Type Managed Power Consumption 750W
TAA Compliant Yes
Expansion Slot Type SFP+ Number of SFP+ Slots 2 Number of Total Expansion Slots 2
Network (RJ-45) Yes Total Number of Network Ports 8 Uplink Port Yes
Manageable Yes
Network Technology 10/100/1000Base-T, 1000Base-X
Ethernet Technology 10 Gigabit Ethernet Layer Supported 2 Networking Standards IEEE 802.1ab, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Color Gray, Orange Depth 5.1" Height 7.1" Weight 2.87lb Width 3.3"
Input Voltage 56V DC PoE (RJ-45) Port Yes PoE Budget 720W Power Source DC
Mount Type Din Rail Mount, Wall Mount
Limited Warranty 5-Year
Package Contents - LS LSS2200-8P Ethernet Switch
- DIN Rail
- Wall Mount Bracket Kit
