Ortronics M4SAD12-09S1A1 Infinium Core M4 Splice Cassette, 12 Single Fiber, SC APC Duplex, SM, OS2
M4SAD12-09S1A1|OR-D120S1A1
Ortronics M4SAD12-09S1A1 Infinium Core M4 Splice Cassette, 12 Single Fiber, SC APC Duplex, SM, OS2
M4SAD12-09S1A1|OR-D120S1A1
Ortronics by Legrand
Ortronics M4SAD12-09S1A1 Infinium Core M4 Splice Cassette, 12 Single Fiber, SC APC Duplex, SM, OS2
M4SAD12-09S1A1 | OR-D120S1A1
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

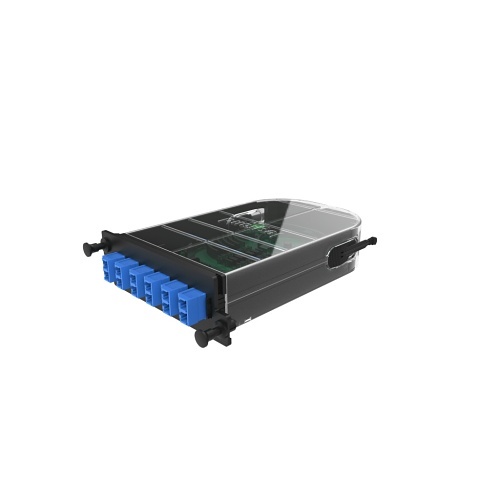

This M4 Splice Cassette enables fast, field termination and provides cable management within the housing. The M4 Splice Cassette is designed for use with Single-Mode OS2 fiber, houses 12 fibers, and provides SC APC Duplex ports. This cassette supports fusion splicing of individual fibers, with heat shrinks, pigtail slack and cable slack managed within the cassette. This eliminates the need for individual splice trays or housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The design of the cassette allows it to be easily mounted from either the front or the rear of an enclosure or panel. Individual fibers within the cassette may be accessed without disturbing the other fibers in the housing.
Main Features
- Mounts from either the front or rear of the enclosure or panel
- Tier 1 performance characteristics for insertion and return loss
General Information
Name: Ortronics M4SAD12-09S1A1 Infinium Core M4 Splice Cassette, 12 Single Fiber, SC APC Duplex, SM, OS2
Category: Ortronics by Legrand, Data Comm & Networking, Patch Panels, Fiber Optic Cassettes
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number OR-D120S1A1 Brand Name Ortronics by Legrand Manufacturer Part Number M4SAD12-09S1A1 Product Line Ortronics Product Name Infinium Core M4 Splice Cassette, 12 Single Fiber, SC APC Duplex, SM, OS2 Product Type Cassette
Connector on First End SC Connector on Second End APC
Depth 6.15" Height 1.24" Width 4.19"
