NVT Phybridge
NVT Phybridge NV-442 4-Channel StubEQ Active Receiver Hub
NV-442 | NV-NV442
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

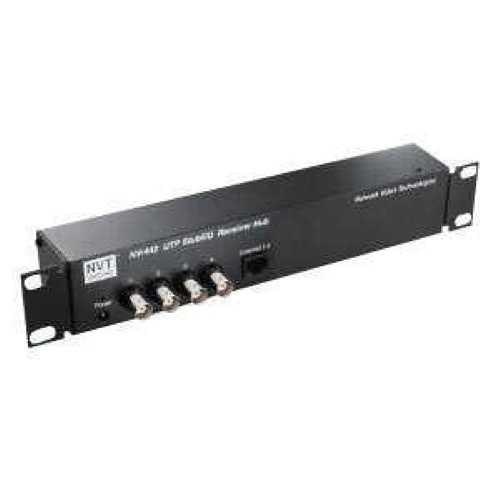

Employing NVT Phybridge’s StubEQ technology, the NV-442 is a 4-channel active (amplified) hub that allows the transmission of full-motion monochrome or color video for distances up to 2,000ft (600m) using Category wire. The receiver hub continuously and automatically conditions the video signal, compensating for cable attenuation, ground loops, and voltage transients, independent of video signal content.
Main Features
- Adaptive StubEQ fully automatic 2-band equalization provides adjustment-free video equalization
- Full motion CCTV video at distances up to 1,500' (460m) when used with any passive NVT transceiver or hub- 2,000' (600m) when used with the NV-653T active transmitter
- RJ45 connectivity with optional NV-RJ45A RJ45-to-screw-terminal adaptor (included)
- Exceptional interference rejection
- Built-in transient protection and ground-lifting
- Compatible with qualified UTP cameras
- Limited lifetime warranty
General Information
Name: NVT Phybridge NV-442 4-Channel StubEQ Active Receiver Hub
Category: NVT Phybridge, Video Surveillance, Video Accessories, Transmitters & Extenders, ADI Pro Rewards
UPC Code: 735890004424
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number NV-NV442 Brand Name NVT Phybridge Manufacturer Part Number NV-442
Power Consumption 15W
Network (RJ-45) Yes
ADI Part Number Replaces NV-652R Model Number Replaces NV-652R
Depth 1.9" Height 1.7" Width 9.65"
Limited Warranty Lifetime
Environmental Certification CE Environmentally Friendly Yes
