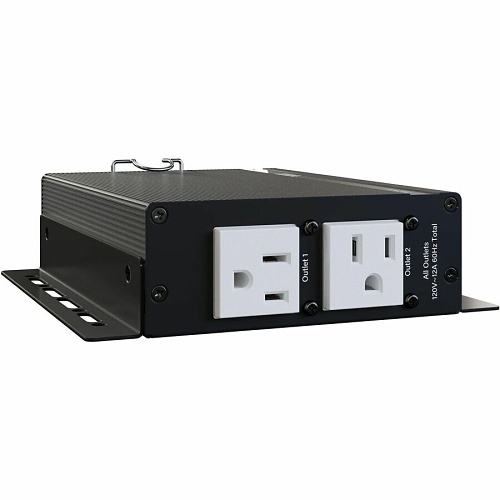

Image of NO-PDX215CSP
Shop all Middle Atlantic by Legrand

Middle Atlantic PDX-215C-SP NEXSYS Series Compact 2-Outlet PDU, 15A

PDX-215C-SP|NO-PDX215CSP
Shop all Middle Atlantic by Legrand

Middle Atlantic PDX-215C-SP NEXSYS Series Compact 2-Outlet PDU, 15A

PDX-215C-SP|NO-PDX215CSP

Sign In for Dealer Pricing

Become an ADI Customer
Image of NO-PDX215CSP
Middle Atlantic by Legrand

Middle Atlantic PDX-215C-SP NEXSYS Series Compact 2-Outlet PDU, 15A

PDX-215C-SP | NO-PDX215CSP

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The Middle Atlantic PDX-215C-SP is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (2) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes Series stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).

Main Features

  • 15A with 2 NEMA 5-15R Outlets
  • The compact design of this NEXSYS PDU is perfect for"behind-the-display" applications, especially digital signage
  • The NEXSYS Compact PDU includes 2 mounting options for mounting flexibility, a clA and L-brackets
  • Enhanced Series Surge Protection
  • The selectable on / off voltage protection from the dry contact port, gives the option to protect sensitive equipment from over / under voltage scenarios
  • IEC Inlet allows for cleaner cable management by selecting your desired length of power cord. A standard 2' cord is included with all models
  • The outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets

General Information

Name: Middle Atlantic PDX-215C-SP NEXSYS Series Compact 2-Outlet PDU, 15A
Category: Middle Atlantic by Legrand, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 656747396441
Country of Origin: Malaysia. Country of origin is subject to change.

Specifications

Product Documents and Resources

Manufacturer Brochure
