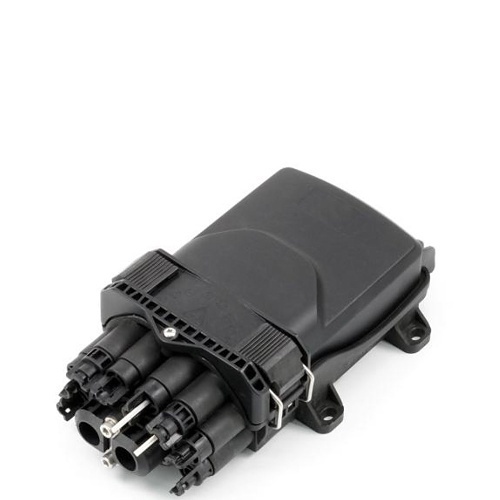

Lynn Electronics HDPAS-SA1-P8 HyperDrop PAS Series Compact Terminal with Pigtail
HDPAS-SA1-P8|LR-HDPASSA1P
Lynn Electronics HDPAS-SA1-P8 HyperDrop PAS Series Compact Terminal with Pigtail
HDPAS-SA1-P8|LR-HDPASSA1P
Lynn Electronics
Lynn Electronics HDPAS-SA1-P8 HyperDrop PAS Series Compact Terminal with Pigtail
HDPAS-SA1-P8 | LR-HDPASSA1P
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

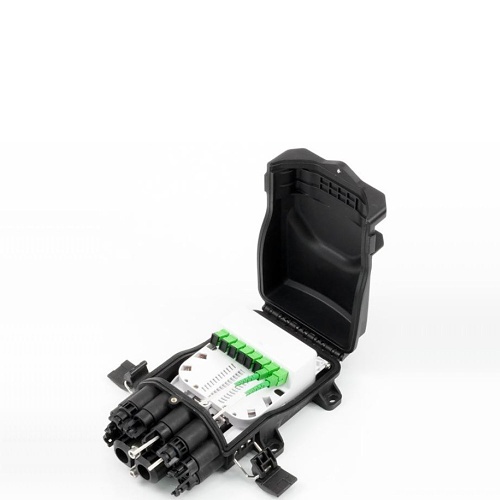

The HyperDrop PAS Compact provides a compact, versatile, and functional solution for FTTH network connections. It features a main fiber feed express port and 8 branch ports. These cost-effective closures are fully sealed units which can be used in any network topology. They are particularly useful for installing in a small hand hole. There is one 24-fiber splice tray included that includes either a 1x8 PLC splitter or 3m long pigtail.
Main Features
- Robust GF-PP housing to withstand acidic and alkaline environments
- Mechanical compression technology provides cost-effective, reliable sealing
- Sealed IP68 rated and can be used both aerially and below grade
- 8 Drop ports can accommodate flat or round drop cables
- 24 Splice capacity
- 1x8 PLC splitter or 3m long pigtail options
General Information
Name: Lynn Electronics HDPAS-SA1-P8 HyperDrop PAS Series Compact Terminal with Pigtail
Category: Lynn Electronics, Tools & Hardware, Tools, Fusion Cable Splicers
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number LR-HDPASSA1P Brand Name Lynn Electronics Manufacturer Part Number HDPAS-SA1-P8 Product Series HyperDrop PAS
