Kramer 50-80177390 TP-122xl Computer Graphics Video and Stereo Audio over Twisted Pair Receiver
TP-122xl|KR-TP122XL
Kramer 50-80177390 TP-122xl Computer Graphics Video and Stereo Audio over Twisted Pair Receiver
TP-122xl|KR-TP122XL
Kramer Electronics
Kramer 50-80177390 TP-122xl Computer Graphics Video and Stereo Audio over Twisted Pair Receiver
TP-122xl | KR-TP122XL
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

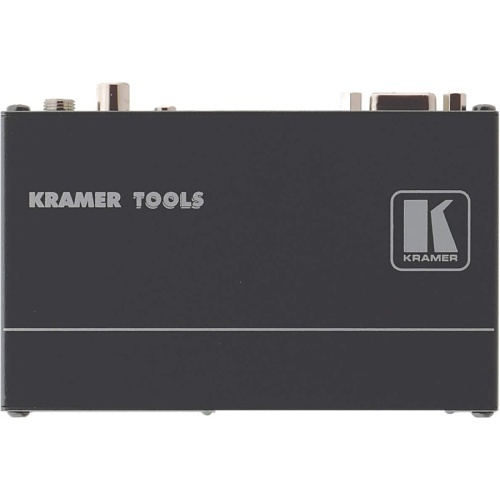

The TP-122xl is a high-performance twisted pair receiver for computer graphics video and unbalanced stereo audio signals. It converts the twisted pair input signal to WUXGA video, unbalanced stereo and S/PDIF audio signals.
- Max. Resolution - WUXGA & 1080p.
- HDTV Compatible.
- Interference Protection - Increased level of protection against noise, spikes and interference in adverse environments.
- System Range - More than 250m (more than 820ft).

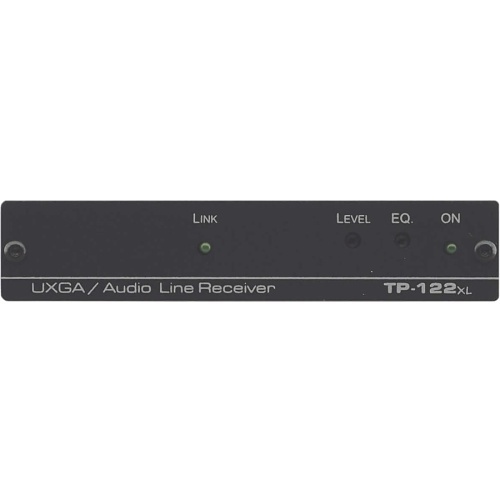

- Level (Gain) and Equalization (Peaking) Adjustment.
- Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 60m (200ft) of each other.
APPLICATIONS
- Presentation and multimedia applications.
- Long range graphics distribution for schools, hospitals, security, and stores.
Main Features
- High-performance twisted pair receiver
- Converts to WUXGA & 1080p video
- Compatible with HDTV
- Interference protection for adverse environments
- System range over 250m (820ft)
- Level and equalization adjustment
- Supports UTP and STP cables
- Power Connect System for easy setup
- Ideal for presentations and multimedia
- Suitable for schools, hospitals, and security
General Information
Name: Kramer 50-80177390 TP-122xl Computer Graphics Video and Stereo Audio over Twisted Pair Receiver
Category: Kramer Electronics, Pro AV, Commercial Video Signal Distribution, Pro Baluns
UPC Code: 7291063065904
Country of Origin: Israel. Country of origin is subject to change.
Specifications
ADI Part Number KR-TP122XL Brand Name Kramer Electronics Manufacturer Kramer Electronics LTD Manufacturer Part Number 50-80177390 Product Model TP-122xl Product Name Computer Graphics Video & Stereo Audio over Twisted Pair Receiver Product Type Video Extender Transmitter
Cable Type Category 5 Connectivity Technology Wired Maximum Operating Distance 820.21' Media Type Supported Twisted Pair Number of Output Devices Supported 1
Maximum Video Resolution 1920 x 1080

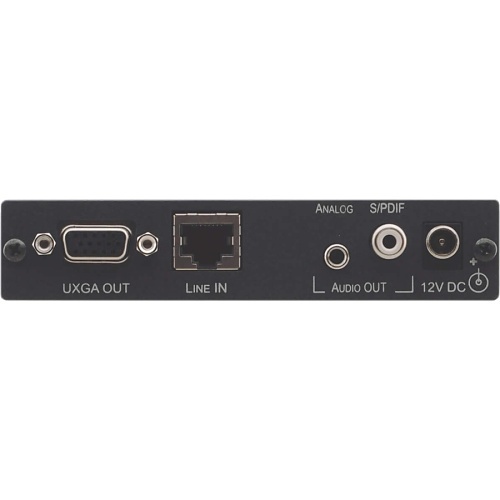

Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of VGA Outputs 1 VGA Out Yes
Depth 2.81" Height 0.96" Width 4.72"
Graphics Modes Full HD
