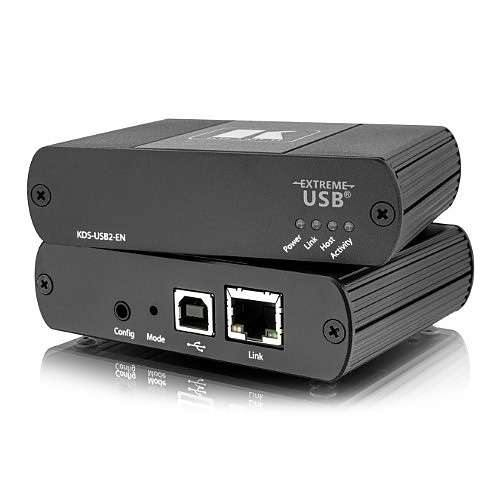

Image of KR-KDSUSB2
Kramer Electronics

Kramer KDS-USB2 Encoder/Decoder Kit, USB Extender, GigE

KDS-USB2|KR-KDSUSB2
Kramer Electronics

Kramer KDS-USB2 Encoder/Decoder Kit, USB Extender, GigE

KDS-USB2|KR-KDSUSB2

Sign In for Dealer Pricing

Become an ADI Customer
Image of KR-KDSUSB2
Kramer Electronics

Kramer KDS-USB2 Encoder/Decoder Kit, USB Extender, GigE

KDS-USB2 | KR-KDSUSB2

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

KDS-USB2 is a USB 2.0 high-speed extension kit for extending USB signals between a host computer and any USB peripheral device such as a mouse, keyboard, display, camera, mobile device, media player, or hard drive. The KDS-USB2 encoder connects to a host computer enabling communication with the USB devices that are connected to the KDS-USB2 decoder. KDS-USB2 includes one encoder and one decoder for basic one-to-one USB extension, but with the purchase of additional units, you can diversify your USB extension system. For example, connect USB cameras in multiple locations to one computer or enable users in multiple locations to collaborate using the same host computer over a Local Area Network (LAN), in real time, using their own keyboards, mice and touch screens. Using Kramer’s cloud-based control platform, you can map and/or control these multi-unit setups.

Main Features

  • High–Speed Extension - Extends USB 2.0 signals up to 100 m with CAT 5e/6/7 cables, and up to 10km with fiber optics cable
  • Extend Multiple Devices - Connect to all 4 decoder ports simultaneously with 5 Volts, 500 mA available on each port
  • Pair up to seven decoders to one encoder/host computer for extended, multi–location collaboration
  • SwitchableUSB - Construct one–to–many and many–to–many unit setups using Kramer’s cloud–based control platform to manage the mapping and switch the connections
  • Passes all key USB–IF compliance tests and FCC/CE Class B certified
  • True Plug and Play - No so' ware drivers required
  • Works with all major operating systems including Windows, macOS and Linux

General Information

Name: Kramer KDS-USB2 Encoder/Decoder Kit, USB Extender, GigE
Category: Kramer Electronics, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code:
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
