OCC KMJA5E5006 CAT5e Keystone Modular Jack
KMJA5E5006 | JQ-KMJ5E5006
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
ICC's Raceway fittings are designed to snap onto raceway sections to help route low-voltage cables. This raceway system is designed to allow left and right turns on raceway sections. Raceway fittings come in retail ready packaging. Thick plastic bags are used to protect the product from damage. The bags have a perforated edge to simplify opening and eliminating the need for a knife or scissors. Features Designed to allow left and right turns.
General Information

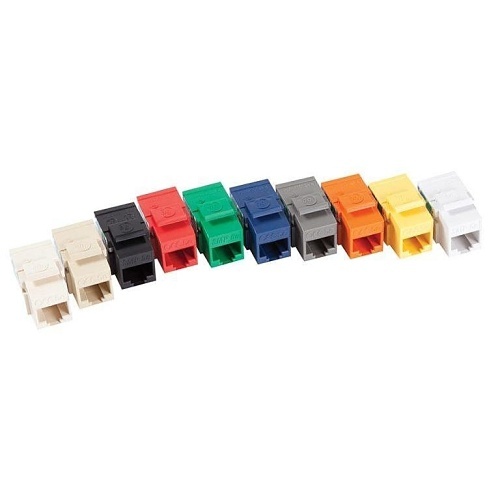

Name: OCC KMJA5E5006 CAT5e Keystone Modular Jack
Category: OCC, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number JQ-KMJ5E5006 Brand Name OCC Manufacturer OCC Manufacturer Part Number KMJA5E5006
Connector Type Category 5e
Color Gray
Compatibility 100 Mbps TP-PMD, 1000BASE-T Gigabit Ethernet, 100BASE-TX Fast Ethernet, 10BASE-T Ethernet, 155/622 Mbps ATM, 270 Mbps digital video, 4/16 Mbps Token Ring, Broadband Video, Voice Environmental Certification RoHS Features 110-style IDC contacts meet TIA 568-C.2 requirements, Available in 12 color options, Backward compatible, Cat 3, and Cat 5 compliant, Compliant with Power over Ethernet (PoE+) requirements, DC current rating- 1.5 A per conductor at 20°C ambient de-rated to 0.75 A at 60°C, Dielectric withstand- 1000 VAC RMS, AC 60Hz or 1414 VDC P-P, Fits all OCC Keystone faceplates and surface mount boxes, Insulation 500MOhms Minimum, Meets IEC 60603-7 requirements, Universal T568A/B wiring for easy installation
