OCC K6AS03 Keystone Jack
K6AS03 | JQ-K6AS03
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

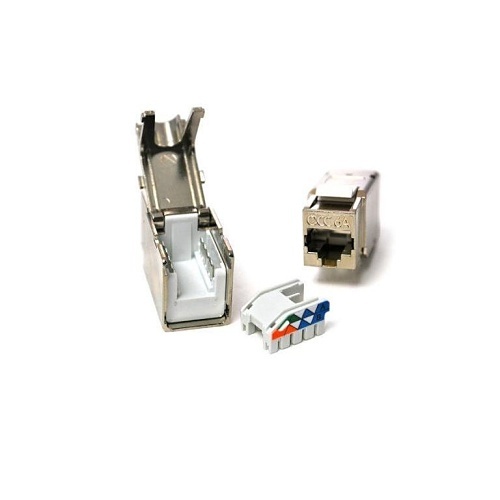

OCC’s Category 6A shielded modular jack with toolless design is simple to terminate and supports high performance 10 Gigabit networks. Termination is accomplished by simply inserting the conductors into the lacing cap, placing the cap into the connector housing, and closing the jack cover. All eight conductors are simultaneously terminated when the jack cover is squeezed closed. This process ensures consistent, reliable terminations. The K6AS jack meets ANSI/TIA-568-C.2 Category 6A and ISO/IEC 11801-2002 AMENDMENT 2 Class EA specifications component performance, and fits into standard OCC faceplates and shielded multimedia panels. The K6AS is also sold as part of 24/48-port patch panel kits in both flat and angled panel configurations. K6AS jacks and patch panels combined with OCC Cat6A F/UTP copper cabling and Cat6A shielded patch cords form an end-to-end Cat6A channel backed by OCC’s 25-year MDIS system performance warranty.
General Information
Name: OCC K6AS03 Keystone Jack
Category: OCC, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number JQ-K6AS03 Brand Name OCC Manufacturer OCC Manufacturer Part Number K6AS03
Contact Plating 50µin gold-plated contacts
Color Red
Limited Warranty 25-Year
Compatibility 1000BASE-T Gigabit Ethernet, 100BASE-TX Fast Ethernet, 10BASE-T Ethernet, 10GBASE-T Ethernet, 155/622 Mbps ATM, 2.5G/5GBASE-T Gigabit Ethernet, Analog Voice/VOiP, Broadband Video, PoE, PoE+, and PoE++ Environmental Certification UL Features 50μin gold-plated contacts, Accommodates 22-24 AWG conductors, Dielectric withstand - 1000 VAC RMS or 1414 VDC, Meets ANSI/TIA-568-C.2 Category 6A specifications, Meets ISO/IEC 11801-2002 AMENDMENT 2 Class EA specifications, Modular Interface - 750 mating cycles, Shielded housing ensures superior ANEXT performance, Supports IEEE 802.3an 10GBASE-T Ethernet, Toolless design allows for simple, consistent, reliable terminations, Zinc alloy housing
