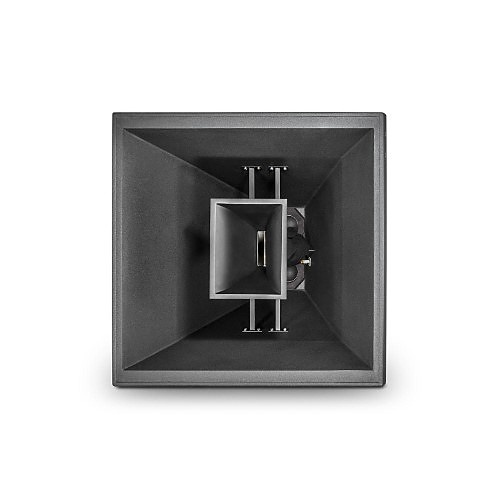

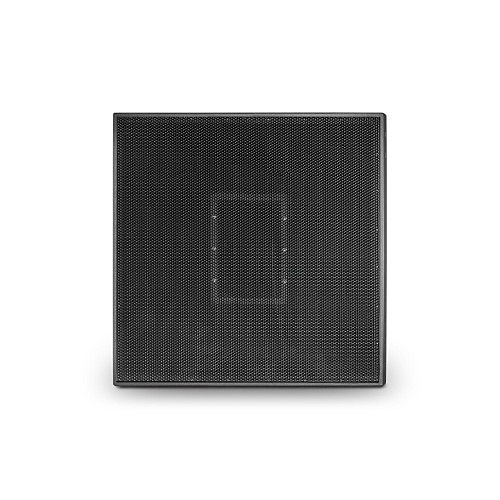

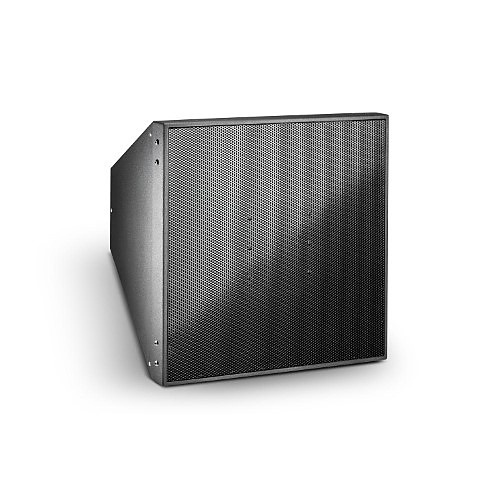

JBL Professional PD743 Speaker
PD743 | JF-PD743
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The PD743 Precision Directivity™ loudspeaker provides high-impact sound reinforcement at throw distances that are beyond the reach of traditional single-driver designs.
Main Features
- 40 deg by 30 deg Coverage Pattern sy mmetrical frontal dimensions allow horizontal or vertical orientation within an array
- IFS Interference Free Su mmation dual HF driver module eliminates destructive interference and increases output by 6 dB
- Dual 2432H compression drivers with 3 diaphragms
- Dual CMCD-82H 8 horn loaded cone mid-range drivers provide 6 dB greater output than traditional designs
- Pattern control maintained to below 400 Hz
- Co-axial mid/high-frequency module layout improves mid frequency arrayability and minimizes size
- Integrated rigging system simplifies array design and construction
General Information
Name: JBL Professional PD743 Speaker
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number JF-PD743 Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number PD743 Product Model PD743 Product Name Very High Output Mid-High Loudspeaker System Product Series PD700i Product Type Speaker
Impedance 16 ohms Material Foam, Plywood, Steel Sensitivity 118dB
Maximum Frequency Response 15 kHz Minimum Frequency Response 200Hz RMS Output Power 700W
Sound Emission 6 dB
Color Black Depth 45.1" Height 39" Size 3" Weight 245lb Width 39"
Limited Warranty 5-Year
Features 40 deg by 30 deg Coverage Pattern symmetrical frontal dimensions allow horizontal or vertical orientation within an array, Co-axial mid/high-frequency module layout improves mid frequency arrayability and minimizes size, Dual 2432H compression drivers with 3 diaphragms, Dual CMCD-82H 8 horn loaded cone mid-range drivers provide 6 dB greater output than traditional designs, IFS Interference Free Summation dual HF driver module eliminates destructive interference and increases output by 6 dB, Integrated rigging system simplifies array design and construction, Pattern control maintained to below 400 Hz
