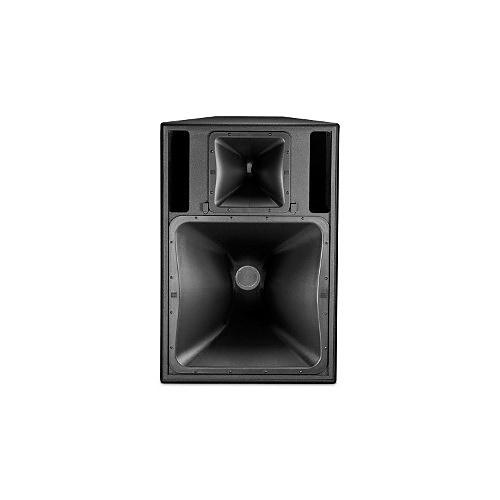

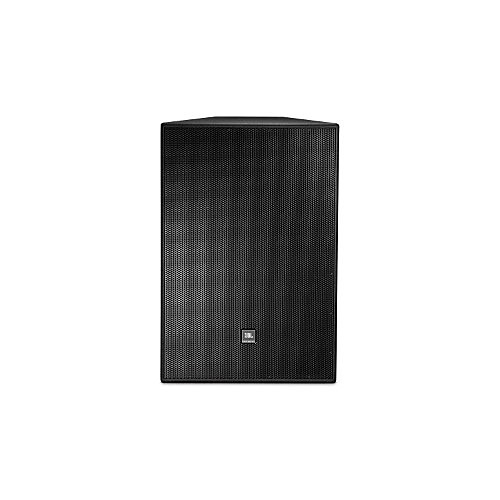

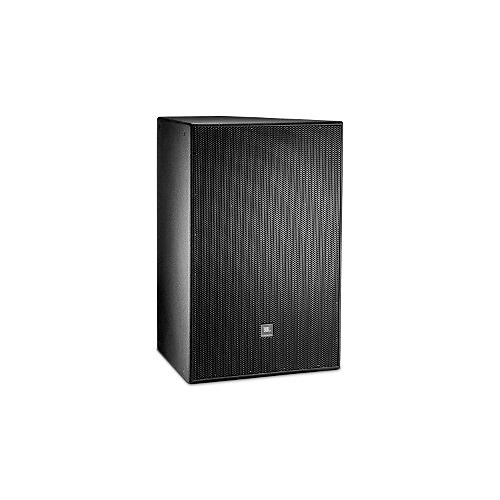

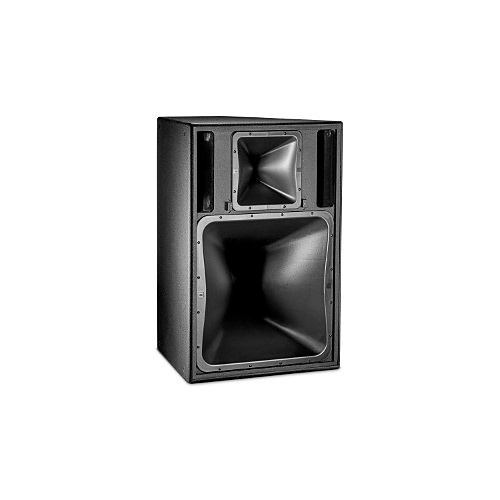

JBL Professional PD6322/64 Pro Speakers,Precision Directivity PD6000 Outdoor,3-way,1500W,Black
PD6322/64|JF-PD632264
JBL Professional PD6322/64 Pro Speakers,Precision Directivity PD6000 Outdoor,3-way,1500W,Black
PD6322/64|JF-PD632264
JBL Professional
JBL Professional PD6322/64 Pro Speakers,Precision Directivity PD6000 Outdoor,3-way,1500W,Black
PD6322/64 | JF-PD632264
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Precision Directivity Full Range Three-Way Loudspeakers
The PD6322 Precision Directivity full range, three-way loudspeakers are designed for applications requiring high output sensitivity with excellent pattern control. They can be utilized standalone in demanding music or speech systems where low frequency extension to 40 Hz is required.
Main Features
- Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz
- High power CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence
- Large format neodymium HF driver provides clear, intelligible high frequency projection
- Large PT Progressive Transition waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response
- Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation
- Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes
General Information
Name: JBL Professional PD6322/64 Pro Speakers,Precision Directivity PD6000 Outdoor,3-way,1500W,Black
Category: JBL Professional, Pro AV, Commercial Audio, Pro Subwoofers
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number JF-PD632264 Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number PD6322/64 Product Line Precision Directivity Product Model PD6322/64 Product Name High Output Three-Way Full-Range Loudspeaker with 2 x 12" LF Product Series PD6000 Product Type Speaker
Crossover Type 3-way Impedance 8 ohms Sensitivity 100dB
Maximum Frequency Response 15 kHz Minimum Frequency Response 49Hz RMS Output Power 1500W
Color Black Depth 35.31" Height 39" Size 12" Weight 192lb Width 26.5"
Features High power CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence, Large format neodymium HF driver provides clear, intelligible high frequency projection, Large PT Progressive Transition waveguides provide consistent pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation, Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes, Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz Indoor/Outdoor Outdoor
