JBL Professional AW595-LS 15" 2-Way All-Weather Loudspeaker, Certified with EN54-24
JBL Professional AW595-LS 15" 2-Way All-Weather Loudspeaker, Certified with EN54-24
JBL Professional AW595-LS 15" 2-Way All-Weather Loudspeaker, Certified with EN54-24
AW595-LS | JF-AW595LS
Please sign in to view pricing and availability and to add to cart.
Product Overview
High Power 2-Way All Weather Loudspeaker with 1 x 15"" LF & Rotatable Horn for Life Safety Applications

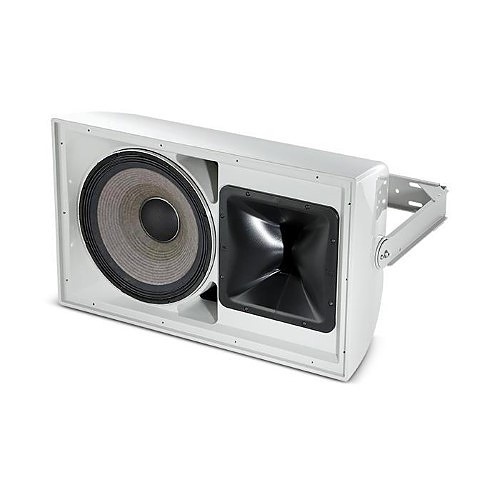

The AW595-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. This loudspeaker is EN 54-24 Compliant for life safety applications.
Main Features
- Weather-Resistant, All Fiberglass Enclosure
- EN 54-24 Compliant for life safety applications
- 90° x 50° Coverage
- 2265H Differential Drive® Low-Frequency Driver
- 2432H High Frequency Compression Drive
- Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
- Rotatable wave guide for vertical or horizontal orientation
- Available in Gray and Black finish
- 400 W, 70/100V Transformer Included

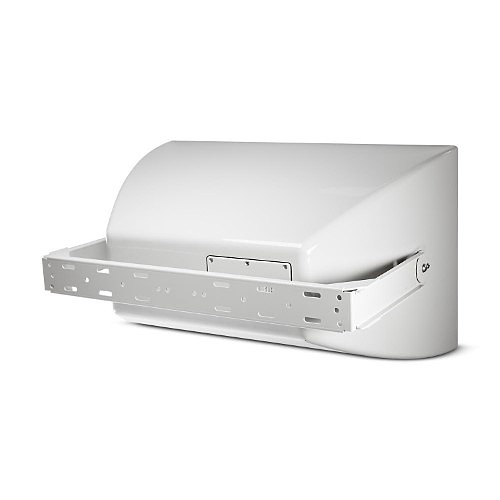

- U-type Mounting Bracket Included
General Information
Specifications
ADI Part Number JF-AW595LS Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number AW595-LS Product Model AW595-LS Product Name High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn Product Series AW Product Type Speaker
Application/Usage Cruise Ship, Entertainment Center, Park, Sports Field, Theme Bar Crossover Type 2-way Impedance 8 ohms Sensitivity 100dB
Maximum Frequency Response 19 kHz Minimum Frequency Response 88Hz RMS Output Power 400W
Color Gray Depth 18.82" Durability Corrosion Resistant, Weather Resistant Height 19.1" Size 15" Weight 62.39lb Width 31.9"
Features Dual Voice Coils, Lightweight Indoor/Outdoor Outdoor Package Contents - High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn
- U-type Mounting Bracket
