Product Overview

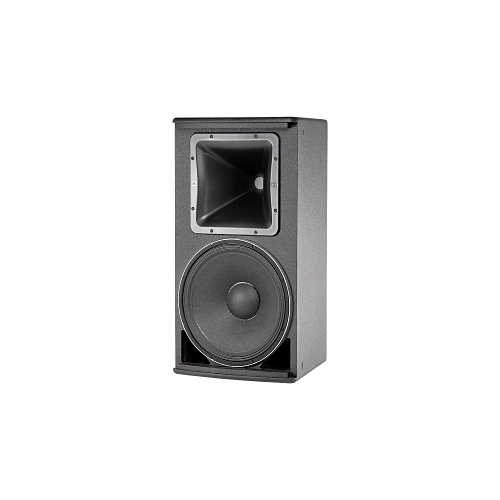

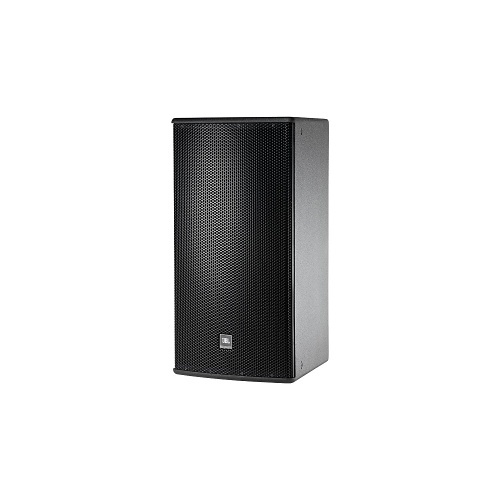

The AM5215/66 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 60° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.
Main Features
- Technical Support, Count on comprehensive Support from one of our 1,500+ skilled field services representatives located in 170 service centers around the world
- Next-Business-Day Support, If you need On-Site support, a technician can arrive by the end of the next business day; even faster response times are available with service upgrades
- Preventive Maintenance, Just like your car, your critical power and cooling infrastructure needs regular service; schedule a-Yearly preventive maintenance visit by one of our qualified technicians
- Priority Access to Spare Parts, Get priority access to spare parts, helping to ensure the parts you need are available when you need them
General Information
Specifications
ADI Part Number JF-AM521566 Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number AM5215/66 Product Model AM5215/66 Product Name AM5215/66 2-Way Loudspeaker System with 1 x 15" LF Product Type Speaker
Application/Usage Auditoriums, Dance Clubs, Live Clubs, Performing Arts Facilities, Sports Facilities, Theatrical Sound Design, Themed Entertainment Venues, Worship Facilities Crossover Type 2-way Sensitivity 98dB
Maximum Frequency Response 20 kHz Minimum Frequency Response 41Hz RMS Output Power 350W
Color Black Depth 20" Durability Weather Resistant Height 30.8" Size 15" Width 17"
Features 2408H-1 High-Frequency Compression Driver, 265H-1 Differential Drive Low-Frequency Driver, 60° x 60° Coverage, Available in Black, White and WRC/WRX finishes, Bi-amp and Passive Mode FIR Tuning Set Delivers Optimized Frequency and Phase Response, Coverage Consistency, and Sound Quality, Bi-Amp/Passive Switchable, Large PT Progressive Transition waveguide for excellent pattern control and low distortion, Rotatable waveguide for vertical or horizontal orientation
