Nascom N1178WSHK/STDD N1178 SHK Series 1" Recessed Stubby Contact with Shark Magnet, DPDT, White
N1178WSHK/STDD|J8-N78HKTDD
Nascom N1178WSHK/STDD N1178 SHK Series 1" Recessed Stubby Contact with Shark Magnet, DPDT, White
N1178WSHK/STDD|J8-N78HKTDD
Nascom
Nascom N1178WSHK/STDD N1178 SHK Series 1" Recessed Stubby Contact with Shark Magnet, DPDT, White
N1178WSHK/STDD | J8-N78HKTDD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

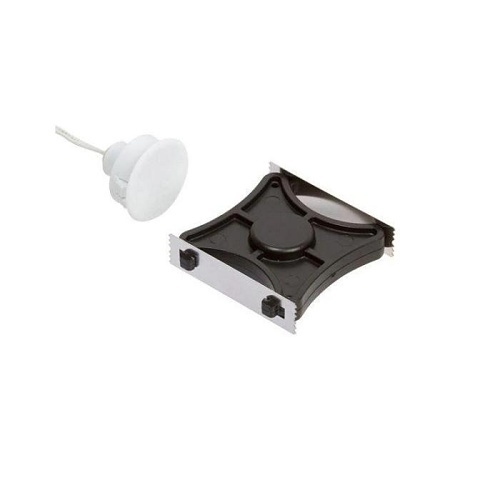

The N1178WSHK-STDD from Nascom is a recessed 1" DPDT switch for steel / wood doors with shark magnet and wire leads, white. The N1178 SHK Series is a 1" recessed stubby door contact couple with the patented SHARK magnet. The set is designed for residential, commercial and industrial steel and wood door applications. The N1178 SHK is the installer's choice of contact configuration because the contact set is designed to cut installation times. /just a pinch of the springs installs the SHARK magnet permanently and the powerful rare earth magnet helps to prevent false alarms caused by shifting or warping doors. The N1178 SHK Series is designed for installation in every type of hinged door including wood doors.
Main Features
- Snap fit on steel - no glue required
- Encapsulated hermetically sealed contacts
- 12" 22 AWG wire leads
- Polypropylene switch housings
- Wide gap - N35 NdFeB rare earth magnet
- Listed to UL 634 standard
- Time saving installation
- No silicone required for magnet install
- Screw terminals
General Information
Name: Nascom N1178WSHK/STDD N1178 SHK Series 1" Recessed Stubby Contact with Shark Magnet, DPDT, White
Category: Nascom, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number J8-N78HKTDD Brand Name Nascom Manufacturer Part Number N1178WSHK/STDD Product Series N1178 SHK
Color White
Contact Type Double Pole Double Throw (DPDT)
Environmental Certification UL Environmentally Friendly Yes
