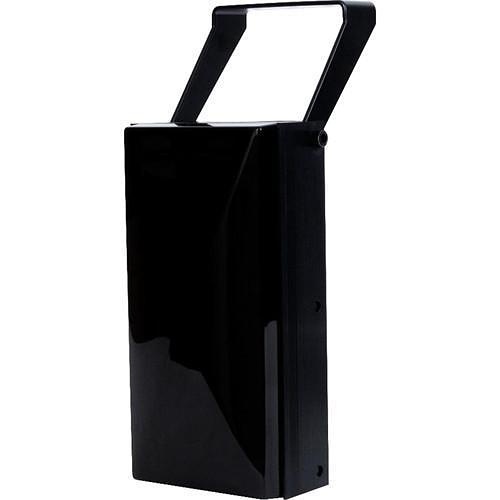

Image of IP-IR919A10
Shop all iluminar

iluminar IR919-A10-POE-2 Super Long Range IR Illuminator, 850nm, 10° Angle, 919' Distance, 161' HOV

IR919-A10-POE-2|IP-IR919A10
Shop all iluminar

iluminar IR919-A10-POE-2 Super Long Range IR Illuminator, 850nm, 10° Angle, 919' Distance, 161' HOV

IR919-A10-POE-2|IP-IR919A10

Sign In for Dealer Pricing

Become an ADI Customer
Image of IP-IR919A10
iluminar

iluminar IR919-A10-POE-2 Super Long Range IR Illuminator, 850nm, 10° Angle, 919' Distance, 161' HOV

IR919-A10-POE-2 | IP-IR919A10

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

  • Super long range IR illuminator
  • SMT LED technology
  • Distances up to 919' (280m)
  • Angles 10o, 30o, 60o, 100 o& 120o
  • 850nm or 940nm Wavelengths
  • Low power consumption (48W)
  • Long life
  • 5 yearwarranty
  • IP67 weatherproof rating
  • Built-in photocell IR on/off
What is IR Illumination?

Active or near infra-red (NIR) illumination is energy which is invisible to the human eye but can be seen by a high quality true day/night camera (IR cut filter removed). The energy from IR illuminators resides just outside the visible red section of the electromagnetic spectrum, above 700nm and below 1000nm. IR illumination is an ideal source of illumination for security cameras for the following reasons.
  • It is invisible to the human eye but visible to black/white and true day/night cameras.
  • Avoids the problem of light pollution.
  • Longer range than visible light
All Iluminar illuminators provide superior IR lighting for video surveillance systems. They are available with a range of angles to cover different distances and scenes.
Supplied with an IP67 rating, they are vandal proof and can be used indoors and outdoors. The anodized aluminum housing provides protection from the harshest weather conditions.

Professional Illuminators vs Camera Built-in Illuminators

There are many advantages of using separate, professional illuminators versusbuilt-in camera infrared illuminators
  • Longer life on the LED's
  • No hot spots
  • Wider angles
  • Longer range
  • Avoids attracting insects to obscure camera view

Main Features

  • Super long range IR illuminator up to 919' (280m)
  • SMT LED Technology for efficient lighting
  • Multiple angle options; 10°, 30°, 60°, 100°, 120°
  • Available in 850nm or 940nm WaveLengths
  • Low Power consumption at 48W
  • IP67 Weatherproof and vandal-proof
  • Built-in photocell for automatic IR on/off
  • Ideal for security cameras with true day/night vision
  • Anodized Aluminum housing for harsh weather protection

General Information

Name: iluminar IR919-A10-POE-2 Super Long Range IR Illuminator, 850nm, 10° Angle, 919' Distance, 161' HOV
Category: iluminar, Video Surveillance, Video Accessories, Illuminators
UPC Code: 818112021000
Country of Origin: United Kingdom. Country of origin is subject to change.
