Da-Lite DL100180L Myriad Reveal with SightLine Projection Screen, Wall / Ceiling Mounted, Parallax Stratos 1.0, 208", 120V
DL100180L|HI-DL100180L
Da-Lite DL100180L Myriad Reveal with SightLine Projection Screen, Wall / Ceiling Mounted, Parallax Stratos 1.0, 208", 120V
DL100180L|HI-DL100180L
Da-Lite by Legrand
Da-Lite DL100180L Myriad Reveal with SightLine Projection Screen, Wall / Ceiling Mounted, Parallax Stratos 1.0, 208", 120V
DL100180L | HI-DL100180L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

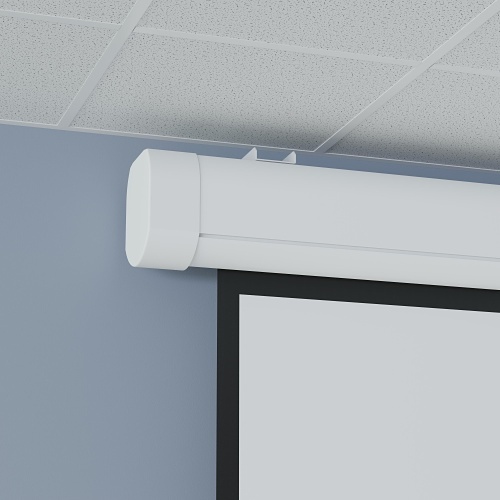

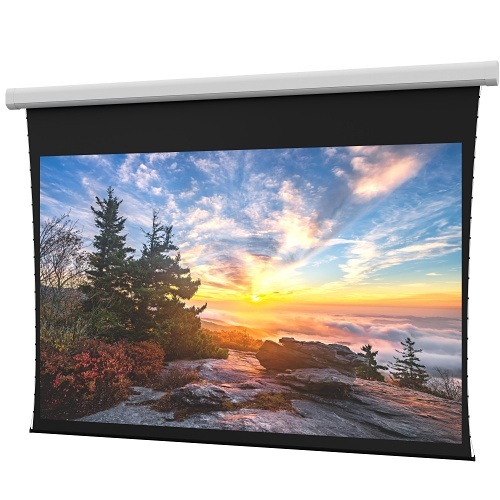

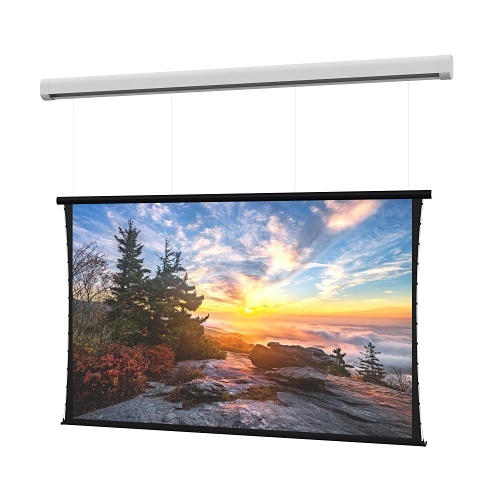

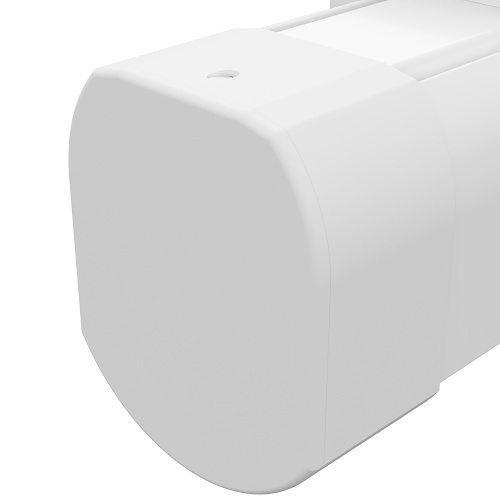

Myriad Reveal is a wall and ceiling mounted electric screen offered in sizes from 14ft - 16ft (4-5 m) wide in 16:9 HDTV and 16:10 Wide formats. Tensioned products are available with HD Progressive 16K ready and Parallax Ambient Light Rejection screen surfaces. It features versatile and adjustable brackets – that accommodate either mounting preference. Installation ease is found with the built-in case leveling (±.5” (12.7 mm) vertically) –, and centering (±6” (152.4 mm) horizontally) adjustability. An innovative weighted bar, in SightLine models, doubles as a closure door – black, to blend in with the border when the screen is fully deployed and the bar smoothly rotates to white to blend into the sleek waterfall case aesthetic when retracted. Available on all Myriad models, SightLine, Da-Lite’s thin cable drop feature, elegantly suspends the screen surface and eliminates black drop – the black border above the projection screen. Specifying drop distance upon ordering is a thing of the past. Now, vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 16ft (5 m) (standard) between the ceiling and the top of the screen – making ordering a snap. What’s more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera/speaker placement. Myriad screens are ideal for large meeting spaces, conference centers, lecture halls, large classrooms, houses of worship, and hotel ballrooms. A global platform globally manufactured (US and EMEA) for your global rollouts. It's a whole new generation of screens.
Main Features
- Support includes a comprehensive five-year warranty to keep you confident in your purchase
- Smart integrated anchor points for roller suspension allows for easy maintenance
- Standard white powder-coated aluminum finish available in black upon request
- Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
- Decora-style, three-button wall switch with motor limit adjustment and third-party control connections on the back
- Standard black backing retains projected brightness on front projection surfaces
- TruGuide Electric Screen Tensioning System provides optimal viewing surface smoothness
General Information
Name: Da-Lite DL100180L Myriad Reveal with SightLine Projection Screen, Wall / Ceiling Mounted, Parallax Stratos 1.0, 208", 120V
Category: Da-Lite by Legrand, Pro AV, Pro Projectors & Accessories, Pro Projector Screens
UPC Code: 840236913503
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HI-DL100180L Brand Name Da-Lite by Legrand Manufacturer Part Number DL100180L Product Name Myriad Reveal Product Type Projection Screen
Diagonal Image Size 208"
Aspect Ratio 16:10
Color Black, White Height 110" Width 176"
