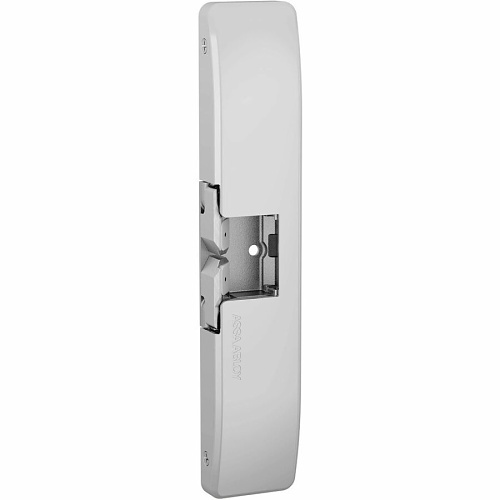

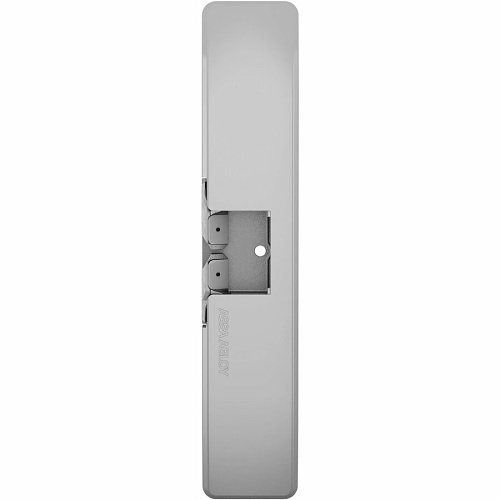

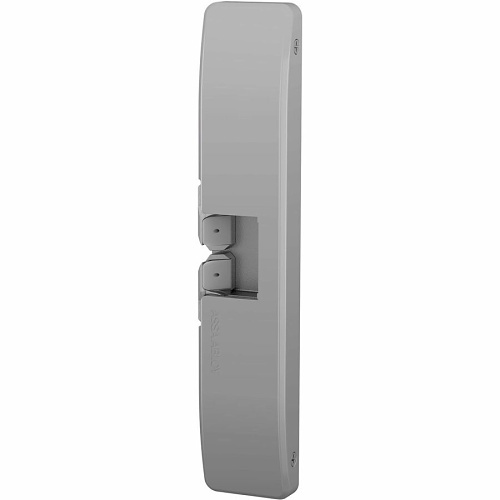

HES 9500-613-LBSM 9500 Series Surface Mounted Electric Strike with Latchbolt Strike Monitor, Fire Rated, Bronze Toned
HES 9500-613-LBSM 9500 Series Surface Mounted Electric Strike with Latchbolt Strike Monitor, Fire Rated, Bronze Toned
HES 9500-613-LBSM 9500 Series Surface Mounted Electric Strike with Latchbolt Strike Monitor, Fire Rated, Bronze Toned
9500-613-LBSM | HE-95613LBSM
Please sign in to view pricing and availability and to add to cart.
Product Overview

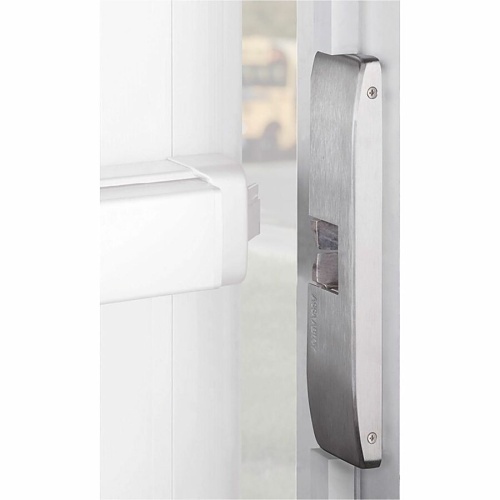

The 9500 series is a 3 hour fire-rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.
The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
Main Features
- 3-hour fire-rated surface mounted electric strike
- Accommodates rim exit devices with 3/4" throw Pullman latchbolt
- No frame cutting required for installation
- Encased in 3/4" thick stainless steel housing
- Exceeds grade-1 standards for strength and performance
- Field selectable for fail secure and fail safe operation
- Compatible with 12 or 24VDC
- Complies with NFPA 80-07 guidelines for fire-rated frames
General Information
Specifications
ADI Part Number HE-95613LBSM Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 9500-613-LBSM Product Name 9500 Electric Strike Product Series 9500 Product Type Electric Strike
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Rim Exit Door Handling Non Handed Holding Strength 1500 lb Material Stainless Steel Security Configuration Fail Safe, Fail Secure
Application/Usage Door, Door Lock, Fire Door, Outdoor Color Bronze Depth 0.75" Height 9" Width 1.75"
Input Current 250mA, 450mA Input Voltage 12V DC, 24V DC Power Source DC
Limited Warranty 5-Year
Additional Information Accommodates up to 3/4" Pullman latch
Certifications & Standards UL 10C Rated CAN4-S104 (ULC-S104) WHI UL 1034 UL 294 (6th Edition) Listed ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373) NFPA-252 ASTM-E152 California Fire Marshall listed NFPA 80-07 Environmental Certification RoHS Environmentally Friendly Yes Features Dual Voltage, Field Selectable Operation, Fire Rated, Horizontal Adjustment, Internally Mounted Solenoid, Latchbolt Strike Monitor (LBSM), PoE Friendly, Static Strength, Surface Mount
