HES by ASSA ABLOY

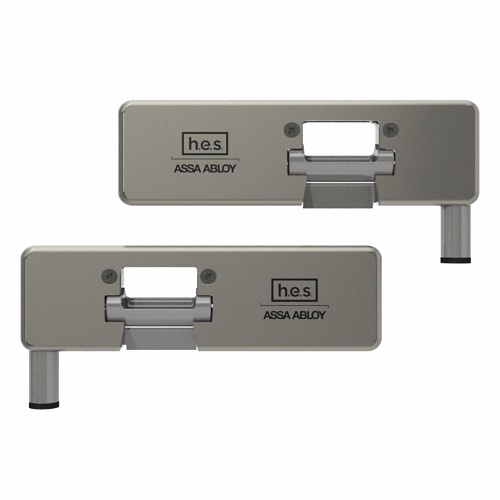

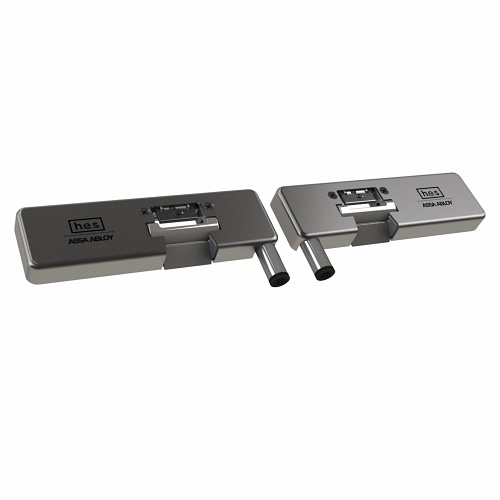

HES 9100R-630-LM Electric Strike
9100R-630-LM | HE-9100R630L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The innovative HES 9100 electric strike sets a new industry standard for glass openings with tubular, vertical rod exit devices. The low-profile 9100 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation without the need to cut the frame. Integrated adjustability provides optimal latch positioning to accommodate demanding installations. The 9100 has adaptable voltage sensing technology which allows the product to function in ranges from 12 through 24 volts with no required wiring selection. Available with field selectable fail safe/ fail secure functionality and monitoring options for maximized versatility. The 9100 exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.
Main Features
- Adaptable voltage sensing technology (12-24 VDC)
- Dynamic strength to 70 ft-lbs
- Endurance 1 million cycles
- Factory configured or field installable monitoring
- Field selectable fail secure and fail safe
- Integrated adjustability
- No cutting required
- Retro-mount using existing header prep
- Stainless steel construction
- Static strength 1,500 lbs
General Information
Name: HES 9100R-630-LM Electric Strike
Category: HES by ASSA ABLOY, Access Control, Locking Devices, Electric Strikes
UPC Code: 740090032207
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number HE-9100R630L Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 9100R-630-LM
Holding Strength 70 lb Material Stainless Steel Security Configuration Fail Safe, Fail Secure
Color Black
Input Voltage 12V DC, 24V DC Power Source AC
Mount Type Surface Mount
Limited Warranty 5-Year
Assembly Required Yes Environmental Certification RoHS, UL Environmentally Friendly Yes Features Adaptable voltage sensing technology (12-24 VDC), Dynamic strength to 70 ft-lbs, Endurance 1 million cycles, Factory configured or field installable monitoring, Field selectable fail secure and fail safe, Integrated adjustability, No cutting required, Retro-mount using existing header prep, Stainless steel construction, Static strength 1,500 lbs
