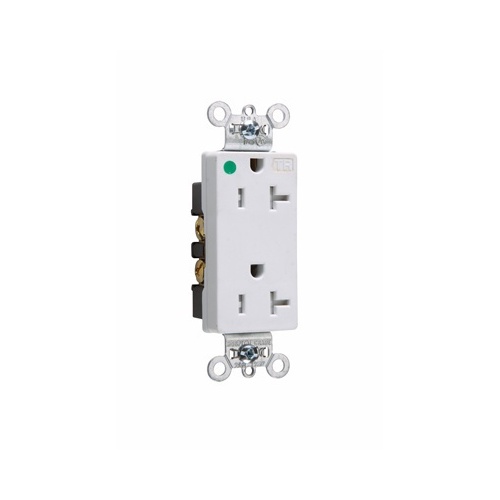

On-Q TR26362-HGW Tamper-Resistant Decora Receptacle, 20A, 125V, Hospital Grade, White
TR26362-HGW|H4-TR26362HE
On-Q TR26362-HGW Tamper-Resistant Decora Receptacle, 20A, 125V, Hospital Grade, White
TR26362-HGW|H4-TR26362HE
On-Q by Legrand
On-Q TR26362-HGW Tamper-Resistant Decora Receptacle, 20A, 125V, Hospital Grade, White
TR26362-HGW | H4-TR26362HE
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the On-Q by Legrand TR26362-HGW Tamper-Resistant Decora Receptacle, designed for safety and efficiency in any environment. This 20A, 125V hospital-grade receptacle features a dual mechanical shutter system that prevents the insertion of foreign objects, ensuring peace of mind. The auto-ground clip guarantees a reliable ground connection, while the break-off line-contact tab allows for quick and easy split-circuit wiring. Installation is a breeze with backed-out tri-drive brass terminal screws and versatile back and side wire capabilities. With robust brass triple-wipe power contacts and secure anchoring screws, this receptacle is built to last. Experience superior performance with a maximum temperature rise of just 30°C under heavy load. Upgrade your electrical solutions today with this reliable receptacle!
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q TR26362-HGW Tamper-Resistant Decora Receptacle, 20A, 125V, Hospital Grade, White
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26362HE Brand Name On-Q by Legrand Manufacturer Part Number TR26362-HGW Product Name 20A 125V Heavy Duty Hospital-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, White Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color White Depth 0.78" Height 2.635" Width 1.322"
Current Rating 20A Voltage Rating 125V
Certifications & Standards cUL CSA, UL498
