On-Q by Legrand

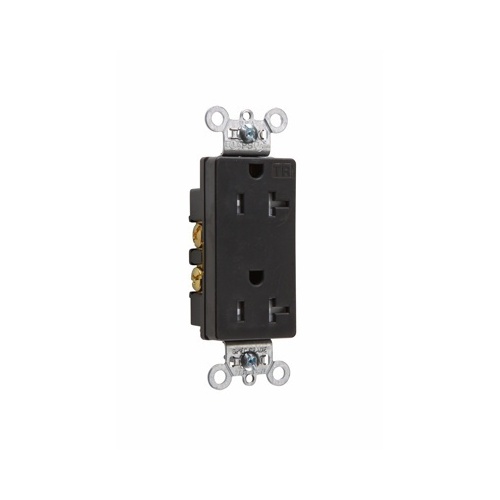

On-Q TR26362-BK Decora Receptacle 20A 125V, Black
TR26362-BK | H4-TR26362BK
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Tamper-Resistant heavy-duty decorator Spec Grade receptacle, back and side wire, 20A, 125V.
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- .032" Thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q TR26362-BK Decora Receptacle 20A 125V, Black
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007277364
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26362BK Brand Name On-Q by Legrand Manufacturer Part Number TR26362-BK Product Name 20A 125V Heavy Duty Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, Black Product Type Power Outlet
Color Black Depth 0.78" Height 2.635" Width 1.322"
Current Rating 20A
Limited Warranty 1-Year
