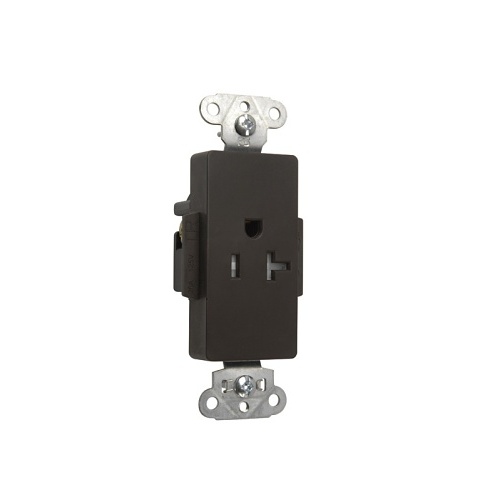

Pass & Seymour TR26361 Decora Single Receptacle, Tamper-Resistant, 20A, 125V, Brown
TR26361|H4-TR26361
Pass & Seymour TR26361 Decora Single Receptacle, Tamper-Resistant, 20A, 125V, Brown
TR26361|H4-TR26361
Pass & Seymour by Legrand
Pass & Seymour TR26361 Decora Single Receptacle, Tamper-Resistant, 20A, 125V, Brown
TR26361 | H4-TR26361
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour TR26361 DECO REC SGL Tamper-Resistant 20A/1 receptacle offers exceptional safety and durability. It features a dual mechanical shutter system that prevents foreign object insertion. Its design includes two drive screws anchoring the strap where removal torque is highest, ensuring robustness. The receptacle supports quick split-circuit wiring with an accessible break-off tab and speeds installation through backed-out tri-drive brass screws. Additional benefits include internal screw-pressure-plate wiring, dual back wire holes, and thick brass triple-wipe power contacts. It withstands a maximum 30°C temperature rise under full load and operates reliably between -40°C and 60°C. Upgrade your electrical installations with this reliable and sturdy solution today!
Main Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 inch thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour TR26361 Decora Single Receptacle, Tamper-Resistant, 20A, 125V, Brown
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007004854
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-TR26361 Brand Name Pass & Seymour by Legrand Manufacturer Part Number TR26361 Product Name 20A 125V Spec-Grade Tamper-Resistant Decorator Duplex Receptacle, Back and Side Wire, Brown Product Type Duplex Receptacle
Receptacle Type Tamper-Resistant
Color Brown Depth 1.188" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Certifications & Standards CSA C22.2 No. 42, UL498 Environmental Certification UL94 V2
