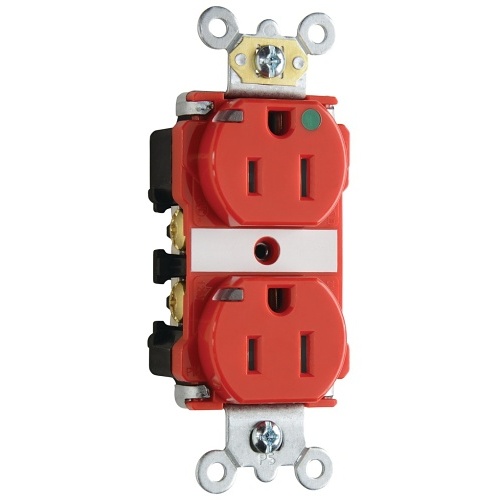

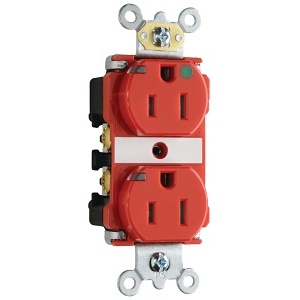

On-Q TR8200-HPIRED Heavy Duty Power Indicating Hospital-Grade Receptacle, 15A 125V, Red
TR8200-HPIRED|H4-R8200HPIR
On-Q TR8200-HPIRED Heavy Duty Power Indicating Hospital-Grade Receptacle, 15A 125V, Red
TR8200-HPIRED|H4-R8200HPIR
On-Q by Legrand
On-Q TR8200-HPIRED Heavy Duty Power Indicating Hospital-Grade Receptacle, 15A 125V, Red
TR8200-HPIRED | H4-R8200HPIR
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Built for the harshest medical environments, Pass and Seymour power indicating receptacles feature 2 industry-exclusive green LEDs that offer clear visual assurance of power indication at the receptacleeven with critical equipment plugged into the device. The LEDs operate independently from one another to accommodate split-circuit wiring installations. Tamper-resistant protection comes standard with each receptacle to further enhance safety.
Main Features
- Thermoplastic dual mechanism shutter system to help prevent insertion of foreign objects
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Extra heavy-duty galavanized steel, one-piece mounting strap with integral ground
- 1-Piece, nickel-plated; brass, triple-wipe power contacts for lasting retention
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Impact-resistant nylon face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- 2-Drive screws anchor strap to back body and face
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
General Information
Name: On-Q TR8200-HPIRED Heavy Duty Power Indicating Hospital-Grade Receptacle, 15A 125V, Red
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-R8200HPIR Brand Name On-Q by Legrand Manufacturer Part Number TR8200-HPIRED Product Name 15A Heavy Duty Power Indicating Hospital-Grade Receptacle, Red Product Type Receptacle
Color Red Depth 0.9" Height 2.75" Width 1.625"
Current Rating 15A
