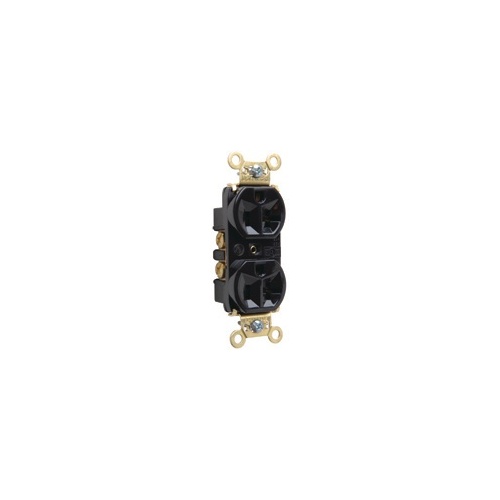

On-Q PS5362-BK Heavy Duty Duplex Receptacle, 20A, 125V AC, Black, Power Outlet
PS5362-BK|H4-PS5362BK
On-Q PS5362-BK Heavy Duty Duplex Receptacle, 20A, 125V AC, Black, Power Outlet
PS5362-BK|H4-PS5362BK
On-Q by Legrand
On-Q PS5362-BK Heavy Duty Duplex Receptacle, 20A, 125V AC, Black, Power Outlet
PS5362-BK | H4-PS5362BK
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Introducing the On-Q by Legrand PS5362-BK Heavy Duty Duplex Receptacle, a reliable power outlet designed for durability and efficiency. This 20A, 125V AC receptacle features a robust brass strap that enhances strength and ensures excellent ground conductivity. The innovative strap tabs securely wrap around the face, preventing any separation from the back body. Enjoy hassle-free installation with the easily accessible break-off line-contact tab, perfect for quick split-circuit wiring. Crafted with a high-strength nylon face, this receptacle is built to last. It accommodates #14 and #10 AWG stranded or solid copper conductors with its internal screw-pressure-plate design. Plus, the auto-ground clip guarantees a positive ground connection. With a maximum temperature rise of just 30°C at full-rated current, this receptacle operates efficiently in a range of conditions, from -40°C to 60°C. Upgrade your electrical setup with the On-Q PS5362-BK and experience unmatched performance. Order yours today!
Main Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- High strength nylon face
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30�C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60�C, minimum -40�C without impact
General Information
Name: On-Q PS5362-BK Heavy Duty Duplex Receptacle, 20A, 125V AC, Black, Power Outlet
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007859973
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-PS5362BK Brand Name On-Q by Legrand Manufacturer Part Number PS5362-BK Product Name 20A 125V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Black Product Type Duplex Receptacle
Color Black Depth 0.78" Height 2.635" Width 1.322"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, cULus UL498 Environmental Certification UL94 V2
