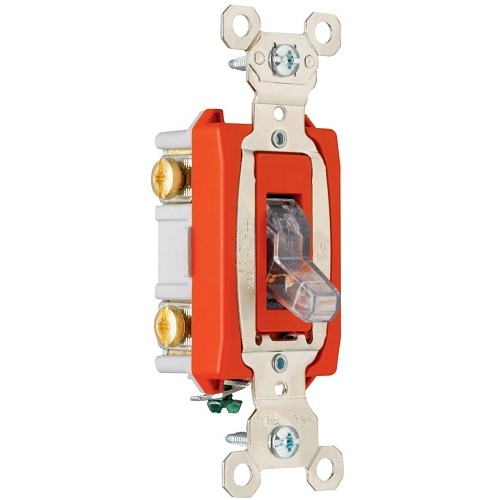

On-Q PS20AC2-CPL 20A Double Pole Pilot, 120/277VAC, Back and Side Wire, Clear, Pink
PS20AC2-CPL|H4-PS20AC2CP
On-Q PS20AC2-CPL 20A Double Pole Pilot, 120/277VAC, Back and Side Wire, Clear, Pink
PS20AC2-CPL|H4-PS20AC2CP
On-Q by Legrand
On-Q PS20AC2-CPL 20A Double Pole Pilot, 120/277VAC, Back and Side Wire, Clear, Pink
PS20AC2-CPL | H4-PS20AC2CP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
These extra-rugged switches offer all the solid construction, excellent operating feel and easy installation features of our Extra Heavy-Duty Switches. They add a choice of two light options. Lighted toggle switches are illuminated when off for easy location in the dark. Pilot lighted switches are illuminated when on for easy monitoring.
Main Features
- External screw-pressure-plate back and side wired, Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast "make" and positive "break" to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
General Information
Name: On-Q PS20AC2-CPL 20A Double Pole Pilot, 120/277VAC, Back and Side Wire, Clear, Pink
Category: On-Q by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-PS20AC2CP Brand Name On-Q by Legrand Manufacturer Part Number PS20AC2-CPL Product Name Industrial Extra Heavy Duty Specification Grade Switch, Lighted When On, Back and Side Wire, Clear Product Type Switch
Application/Usage Industrial Control Type Toggle Switch
Color Transparent Depth 1.073" Height 3.281" Width 1.32"
Current Rating 20A Input Voltage 277V AC Power Rating 2W
Switch Type Toggle
Limited Warranty 1-Year
Certifications & Standards FEDSPEC, UL 20 Environmental Certification FEDSPEC, UL 20
