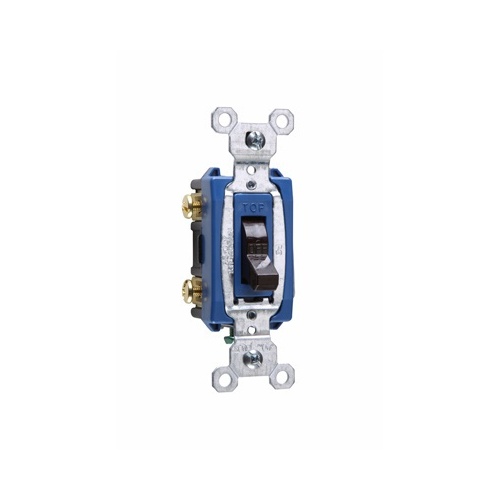

On-Q CSB15AC2 Construction 2-Pole Switch, Back and Side-Wire, 15A, 120/277V
CSB15AC2|H4-CSB15AC2
On-Q CSB15AC2 Construction 2-Pole Switch, Back and Side-Wire, 15A, 120/277V
CSB15AC2|H4-CSB15AC2
On-Q by Legrand
On-Q CSB15AC2 Construction 2-Pole Switch, Back and Side-Wire, 15A, 120/277V
CSB15AC2 | H4-CSB15AC2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Construction 2-pole switch, back and side-wire, 15A 120/277V.
Main Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 - 10AWG copper or copper-clad wire
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Oversized silver alloy contacts for longer dependable switch life
- Tri-drive terminal and mounting screws
- Locking support provides resistance to face and back body separation
General Information
Name: On-Q CSB15AC2 Construction 2-Pole Switch, Back and Side-Wire, 15A, 120/277V
Category: On-Q by Legrand, Smart Home, Smart Dimmers & Light Switches
UPC Code: 785007126105
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-CSB15AC2 Brand Name On-Q by Legrand Manufacturer Part Number CSB15AC2 Product Name Hard Use Specification Grade Switch, Brown Product Type Switch
Application/Usage Commercial Control Type Toggle Switch
Color Brown Depth 1.09" Height 4.195" Width 1.25"
Current Rating 15A Input Voltage 120-277V AC Power Rating 2W
Switch Type Toggle
Certifications & Standards FEDSPEC, UL 20 Environmental Certification FEDSPEC, UL 20
