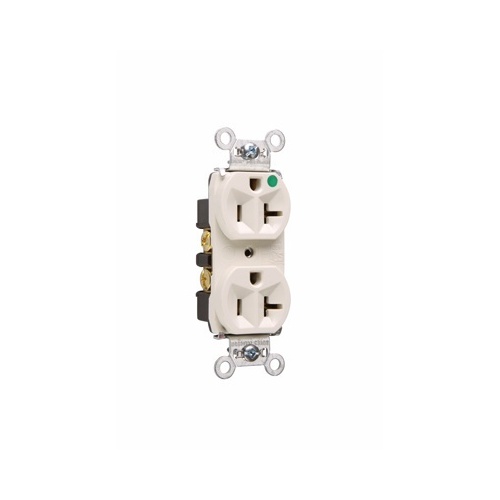

On-Q 8300-HLA Power Outlet, Compact HG Duplex Receptacle, 20A 125V
8300-HLA|H4-8300HLA
On-Q 8300-HLA Power Outlet, Compact HG Duplex Receptacle, 20A 125V
8300-HLA|H4-8300HLA
On-Q by Legrand
On-Q 8300-HLA Power Outlet, Compact HG Duplex Receptacle, 20A 125V
8300-HLA | H4-8300HLA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The On-Q 8300-HLA Compact Duplex Receptacle is built to deliver durability and reliability for your electrical needs. It features an impact-resistant nylon face and a high-strength thermoplastic back body, ensuring long-lasting performance. The triple-wipe brass power contacts provide secure connections, while a corrosion-resistant zinc-plated steel strap adds strength. Designed with convenient split-circuit wiring and easy installation in mind, it includes auto-ground clip, tri-drive screws, and wide wire acceptance. Rated for high temperature tolerance, it's a smart choice for safe and efficient use. Upgrade your setup with confidence today!
Main Features
- Impact-resistant nylon face
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessible break-off line contact connecting tab for split circuit wiring
- Corrosion-resistant, zinc-plated steel strap is locked in
- Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors
- High strength thermoplastic back body
- Auto-ground clip assures positive ground
- Compact design for easy installation
- Tri-drive terminal and mounting screws
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q 8300-HLA Power Outlet, Compact HG Duplex Receptacle, 20A 125V
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007830170
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-8300HLA Brand Name On-Q by Legrand Manufacturer Part Number 8300-HLA Product Name 20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, Back and Side Wire, Light Almond Product Type Duplex Receptacle
Color Almond Depth 0.78" Height 3.281" Width 1.322"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, UL498
