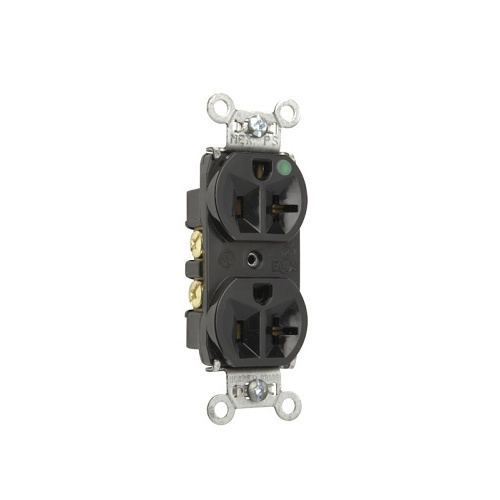

On-Q 8300-HBK Compact HG Duplex Power Outlet, 20A 125V, Black
8300-HBK|H4-8300HBK
On-Q 8300-HBK Compact HG Duplex Power Outlet, 20A 125V, Black
8300-HBK|H4-8300HBK
On-Q by Legrand
On-Q 8300-HBK Compact HG Duplex Power Outlet, 20A 125V, Black
8300-HBK | H4-8300HBK
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The On-Q 8300-HBK Compact Duplex Receptacle by Legrand features a durable, impact-resistant nylon face and triple-wipe brass power contacts for excellent retention. It includes an easily accessible break-off tab for split circuit wiring and a corrosion-resistant zinc-plated steel strap that's securely locked. Designed with an internal screw-pressure-plate back wire and side wire terminals, it accommodates #14 to #10 AWG copper or copper-clad conductors. The high-strength thermoplastic body and auto-ground clip ensure reliable grounding. Its compact design simplifies installation, and tri-drive screws enhance mounting security. Rated for a maximum 30°C temperature rise at full load and operable between -40°C to 60°C, this receptacle combines safety and durability. Upgrade your electrical setup with this dependable and easy-to-install receptacle today!
Main Features
- Impact-resistant nylon face
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessible break-off line contact connecting tab for split circuit wiring
- Corrosion-resistant, zinc-plated steel strap is locked in
- Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors
- High strength thermoplastic back body
- Auto-ground clip assures positive ground
- Compact design for easy installation
- Tri-drive terminal and mounting screws
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q 8300-HBK Compact HG Duplex Power Outlet, 20A 125V, Black
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007861389
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-8300HBK Brand Name On-Q by Legrand Manufacturer Part Number 8300-HBK Product Name 20A 125V Heavy Duty Hospital-Grade Compact Duplex Receptacle, Back and Side Wire, Black Product Type Duplex Receptacle
Color Black Depth 0.78" Height 3.281" Width 1.322"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, UL498 Environmental Certification UL94 V2
