On-Q by Legrand

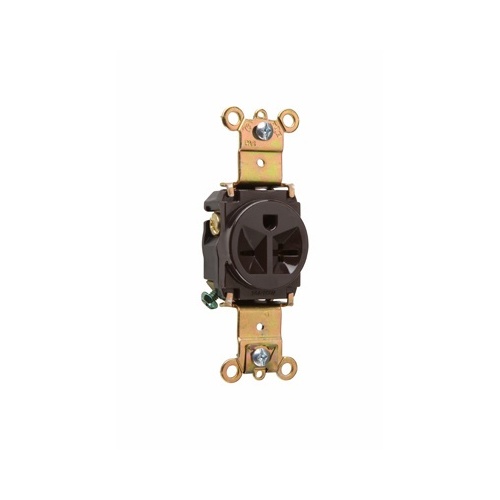

On-Q 5871 RECP SGL 20A 250V S+B WIRE BN
5871 | H4-5871
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Heavy-duty spec grade single receptacle back and side wire 20A 250V.
Main Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face / body assembly
- 1-Piece heat-treated triple-wipe brass power contacts
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face and thermoplastic back body
- Internal screw-pressure-plate back wire capable of accepting #14-#10AWG solid or stranded copper or copper-clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
General Information
Name: On-Q 5871 RECP SGL 20A 250V S+B WIRE BN
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007587104
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5871 Brand Name On-Q by Legrand Manufacturer Part Number 5871 Product Line Pass and Seymour Product Name 20A 250V Heavy Duty Spec-Grade Single Receptacle, Back and Side Wire, Brown Product Type Receptacle
Color Brown Depth 1.09" Height 1.68" Width 1.32"
Current Rating 20A
Certifications & Standards CSA C22.2 No. 42, CulUS, FEDSPEC, UL 498 Environmental Certification CSA C22.2 No. 42, cULus, UL 498
