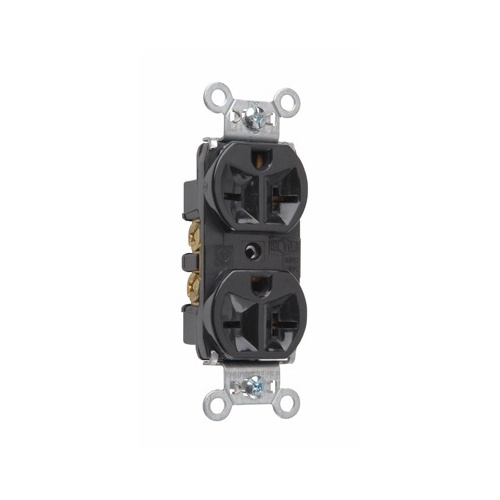

On-Q 5862-BK Power Outlet, Duplex 20A 250V S+B Wire, Black
5862-BK | H4-5862BK
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Discover the On-Q 5862-BK Duplex Receptacle, a robust electrical solution designed for reliability and safety. Featuring a durable brass strap that ensures enhanced strength and excellent ground conductivity, this receptacle also boasts strap tabs that securely lock the face to the back body, preventing separation. Its innovative break-off, line-contact tab allows for quick and efficient split-circuit wiring. Equipped with a strong nylon face and an internal screw-pressure-plate wired to accommodate various conductor sizes, it guarantees a secure connection. The auto-ground clip provides a dependable ground path, while its thermal design withstands temperature rises up to 30°C and operates within a safe range of -40°C to 60°C. Choose this receptacle for high performance and peace of mind. Upgrade your wiring setup today with On-Q by Legrand!
Main Features
- Heavy-duty, brass strap for added strength and ground conductivity
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Strap tabs wrap around face to prevent strap from separating from face and back body
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- High strength nylon face
- Internal screw-pressure-plate back and side wired to accept #14 and #10 AWG stranded or solid copper or copper-clad conductors
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q 5862-BK Power Outlet, Duplex 20A 250V S+B Wire, Black
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007998351
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5862BK Brand Name On-Q by Legrand Manufacturer Part Number 5862-BK Product Name 20A 250V Heavy Duty Spec-Grade Duplex Receptacle, Back and Side Wire, Black Product Type Duplex Receptacle
Color Black Depth 0.78" Height 2.635" Width 1.322"
Current Rating 20A Voltage Rating 250V
Certifications & Standards UL 498, WC596
