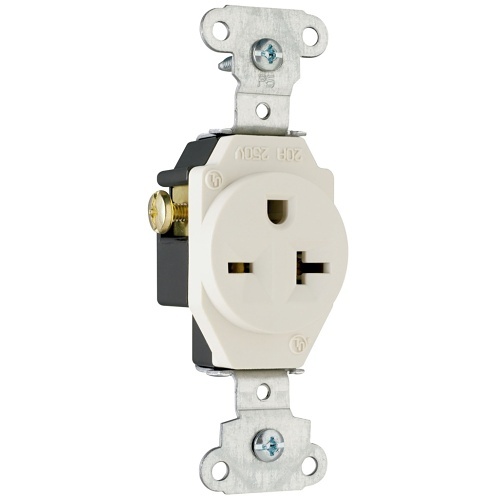

On-Q 5851-LA Receptacle, Single, 20A, 250V, Side-Wire, Light Almond
5851-LA|H4-5851LA
On-Q 5851-LA Receptacle, Single, 20A, 250V, Side-Wire, Light Almond
5851-LA|H4-5851LA
On-Q by Legrand
On-Q 5851-LA Receptacle, Single, 20A, 250V, Side-Wire, Light Almond
5851-LA | H4-5851LA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Heavy-duty spec grade single receptacle, side wire 20A 250V.
Main Features
- Auto-ground clip assures positive ground
- 1-Piece brass, triple-wipe power contacts for lasting retention
- Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
- Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility
- 1-Piece brass triple-wire power contacts for lasting retention
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q 5851-LA Receptacle, Single, 20A, 250V, Side-Wire, Light Almond
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007585131
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5851LA Brand Name On-Q by Legrand Manufacturer Part Number 5851-LA Product Name 20A 250V Heavy Duty Spec-Grade Single Receptacle, Side Wire, Light Almond Product Type Power Outlet
Color Almond Depth 1.08" Width 1.38"
Current Rating 20A
Limited Warranty 1-Year
