On-Q by Legrand

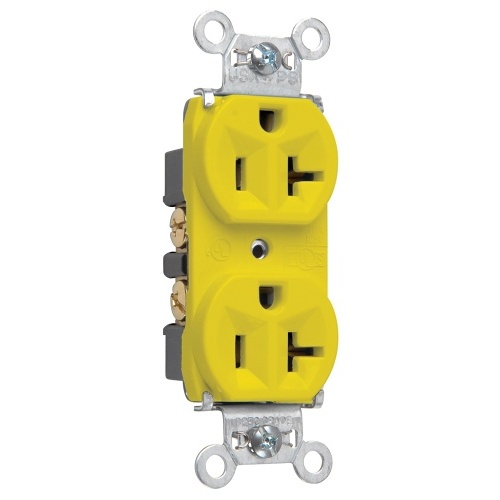

On-Q 5362YLW RECP Duplex Receptacle, 20A, 125V, Yellow
5362YLW | H4-5362YLW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
eHard use spec grade duplex receptacle back and side wire 20A 125V.
Main Features
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face
- 8 hole internal screw-pressure-plate back wire terminals accept 10 - 14AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Temperature rise. Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q 5362YLW RECP Duplex Receptacle, 20A, 125V, Yellow
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5362YLW Brand Name On-Q by Legrand Manufacturer Part Number 5362YLW Product Line Pass & Seymour Product Name 20A 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Yellow Product Type Commercial Receptacles
Color Yellow
Limited Warranty 1-Year
