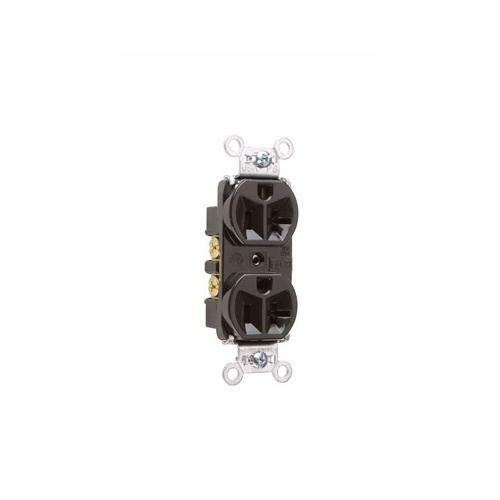

Pass & Seymour 5362 Duplex Receptacle, 20A, 125V, Side and Back Wired, Brown
5362|H4-5362
Pass & Seymour 5362 Duplex Receptacle, 20A, 125V, Side and Back Wired, Brown
5362|H4-5362
Pass & Seymour by Legrand
Pass & Seymour 5362 Duplex Receptacle, 20A, 125V, Side and Back Wired, Brown
5362 | H4-5362
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pass & Seymour 5362 receptacle by Legrand is designed for durability and ease of use. It features a corrosion-resistant, plated steel strap securely locked to the body to prevent separation. Two drive screws firmly anchor the strap where it's most needed. The receptacle includes a convenient break-off tab for quick split-circuit wiring. Its impact-resistant nylon face and isolated terminal compartments ensure safety and reliability. The 8-hole screw-pressure-plate back wire terminals accept #10 - #14 AWG conductors, with an auto-ground clip for secure grounding. It operates efficiently within a temperature range of -40°C to 60°C, with a maximum 30°C temperature rise under heavy load. Upgrade your electrical setup with this robust, easy-to-install receptacle today!
Main Features
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Two drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: Pass & Seymour 5362 Duplex Receptacle, 20A, 125V, Side and Back Wired, Brown
Category: Pass & Seymour by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007536201
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5362 Brand Name Pass & Seymour by Legrand Manufacturer Part Number 5362 Product Name 20A 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Brown Product Type Duplex Receptacle
Color Brown Depth 0.78" Height 2.63" Width 1.32"
Current Rating 20A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards UL 498
