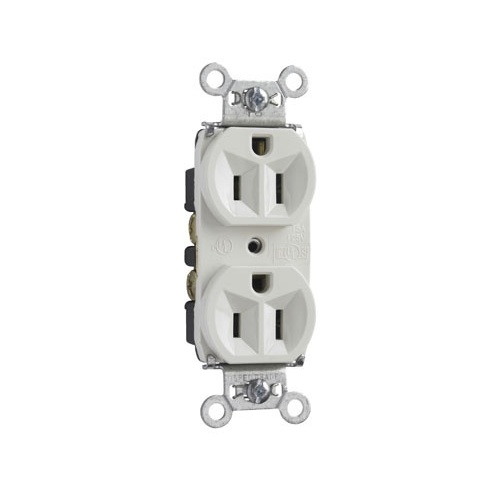

On-Q 5262-LA Duplex Receptacle, 15A, 125V, Side and Back Wired, Light Almond
5262-LA|H4-5262LA
On-Q 5262-LA Duplex Receptacle, 15A, 125V, Side and Back Wired, Light Almond
5262-LA|H4-5262LA
On-Q by Legrand
On-Q 5262-LA Duplex Receptacle, 15A, 125V, Side and Back Wired, Light Almond
5262-LA | H4-5262LA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The On-Q 5262-LA receptacle by Legrand offers durable performance with a corrosion-resistant steel strap securely locked to the face and body to prevent separation. It features an LED indicator: steady green means protected, flashing red means unprotected, and off indicates no power. The design includes a break-off line-contact tab for quick split-circuit wiring and an impact-resistant nylon face. Terminal compartments are isolated, ensuring secure wiring with an auto-ground clip for safety. This outlet manages temperature well, rising no more than 30°C during heavy use and operating between -40°C and 60°C. Ideal for reliable and secure electrical connections. Buy now to enhance your home or workspace safety and convenience!
Main Features
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- LED Indication; Steady green = protected, Flashing re = not protected, OFF = no power to unit
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- Temperature Rise; Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature; Maximum continuous 60°C, minimum -40°C without impact
General Information
Name: On-Q 5262-LA Duplex Receptacle, 15A, 125V, Side and Back Wired, Light Almond
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007193398
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5262LA Brand Name On-Q by Legrand Manufacturer Part Number 5262-LA Product Name 15A 125V Hard Use Spec-Grade Duplex Receptacle, Back and Side Wire, Light Almond Product Type Duplex Receptacle
Color Almond Depth 0.78" Height 2.635" Width 1.322"
Current Rating 15A Voltage Rating 125V
Limited Warranty 1-Year
Certifications & Standards CSA C22.2 No. 42, UL498 Environmental Certification UL94 V2
