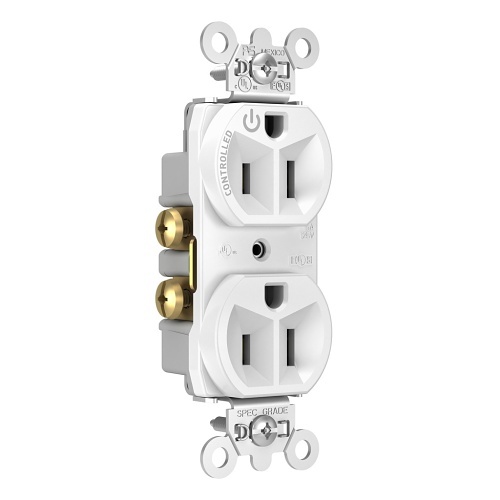

On-Q 5262CH-W Power Outlet, 15A Half Cont Duplex Receptacle, White
5262CH-W|H4-5262CHW
On-Q 5262CH-W Power Outlet, 15A Half Cont Duplex Receptacle, White
5262CH-W|H4-5262CHW
On-Q by Legrand
On-Q 5262CH-W Power Outlet, 15A Half Cont Duplex Receptacle, White
5262CH-W | H4-5262CHW
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Permanent controlled receptacle marking allows for long-lasting, easy identification of controlled receptacle for end-users. NEMA-approved and compliant with 2014 NEC, CA Title 24, and ASHRAE Energy Efficiency Standard 90.1.
Main Features
- Can be wired to any number of system-based or stand-alone plug load control solutions
- Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 inch thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
General Information
Name: On-Q 5262CH-W Power Outlet, 15A Half Cont Duplex Receptacle, White
Category: On-Q by Legrand, Batteries & Power Supplies, Electrical Cords & Connectors, Single & Duplex Outlets
UPC Code: 785007038309
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number H4-5262CHW Brand Name On-Q by Legrand Manufacturer Part Number 5262CH-W
