George Risk Industries

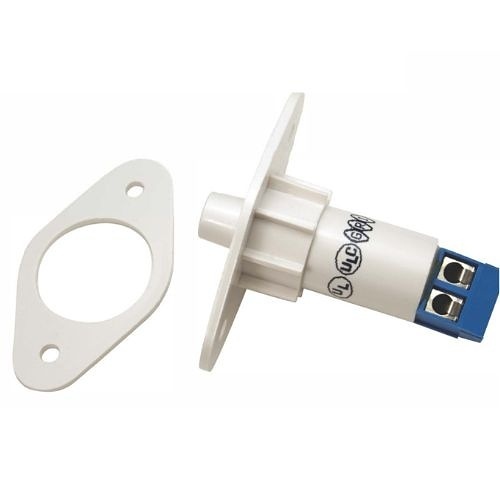

GRI PBF100T-W 3/4" Recessed Push Button Reed Switch
PBF100T-W GEN | GI-PBF100TWG
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The push button or plunger actuated PB series was developed as a direct replacement of an existing and problematic mechanical type contact. The PBF flange push button can be installed without re-drilling or redesigning the original installation. The sealed contacts of the reed switch insure a long service life. Plunger actuated reed switches have become so popular on new installations that many variations are now being produced. The PB-100 is a press fit design and eliminates the screw mounted flange. A terminal connection is offered on most models and this option can be added by including a T at the end of the part number - for example PB-100-T.
Main Features
- Recessed magnetic contac
- PB is 0.56" press fit
- PBF is 0.7" x 1.5" with screw down flange
- Adjustable screw plunger, travel distance total .270, pre-travel is .090 ± .040
- 12" 22AWG leads or screw terminals
- Longer leads, zip cords or jacketed cable upon request
- Hermetically sealed
- Plated contacts resist sticking or freezing
- Spacers and mounting hardware included
- Built-in E.O.L. Resistors and Diodes upon request
General Information
Name: GRI PBF100T-W 3/4" Recessed Push Button Reed Switch
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625042593
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-PBF100TWG Brand Name George Risk Industries Manufacturer Part Number PBF100T-W GEN
Color White
Diameter 3/8"
Limited Warranty Lifetime
