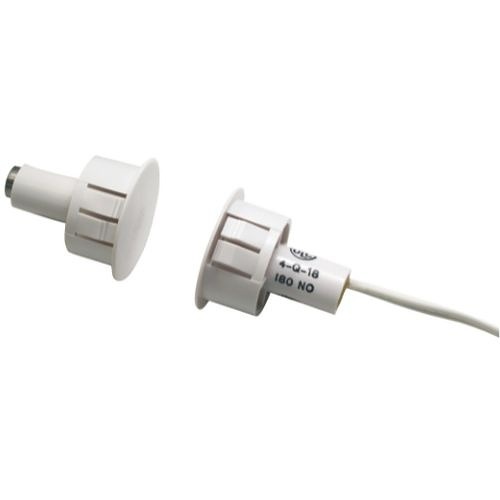

GRI 18512W 3/4" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25A, Open Loop, N/C, B, White
185-12-W|GI-18512W
GRI 18512W 3/4" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25A, Open Loop, N/C, B, White
185-12-W|GI-18512W
George Risk Industries
GRI 18512W 3/4" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25A, Open Loop, N/C, B, White
185-12-W | GI-18512W
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The GRI 180 Series is the industry standard 3/4" diameter recessed steel door switch set with 12" leads. The 184 Series is a 1" diameter switch set.
The innovative GRI 8080-T Series is a 3/4" diameter recessed switch set designed for residential, commercial and industrial steel doors and frames. The shorter length and the introduction of PC board type terminals makes the installation of the set quick and simple with no soldering, B connectors or tape to catch during installation or removal, reducing the cost of installation and creating greater profitability.Main Features
- Lifetime Warranty
- Colors:White, Brown, Grey or Black
- UL and ULC Approved
- 180-12 & 184-12 UL 10C Fire Rated
- Available in Closed Loop, Open Loop and SPDT
- 3/4" and 1" Diameter Mounting
- Standard 12" Leads or Terminals
- Self-Locking
- Solid, One Piece Design
- 7/8" Diameter also Available - Call Factory
General Information
Name: GRI 18512W 3/4" Steel Door Recessed Switch Set, Standard Gap, 5W, 175VDC, 0.25A, Open Loop, N/C, B, White
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625004485
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number GI-18512W Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 185-12-W Product Model 185-12-W Product Name 180 Magnetic Contact Product Type Magnetic Contact
Application/Usage Commercial, Industrial, Residential Connectivity Technology Wired Contact Form Form B Material Steel Power Consumption 5W Standard Gap 0.5"
Color White
Input Current 250mA Input Voltage 175V DC Power Source DC Adapter
Contact Type N.C., Open Loop Installation Type Commercial Length 12"
Limited Warranty Lifetime
Features End of Line (EOL) Resistor
