Simply45 S45-3590W-25 Keystone Jack, CAT5E UTP 90-Degree, White
S45-3590W-25|G0-S45359W25
Simply45 S45-3590W-25 Keystone Jack, CAT5E UTP 90-Degree, White
S45-3590W-25|G0-S45359W25
Simply45
Simply45 S45-3590W-25 Keystone Jack, CAT5E UTP 90-Degree, White
S45-3590W-25 | G0-S45359W25
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Cat5e UTP 90° White Keystone 110 Style RJ45 Jack, 8P8C, 50µ Gold Plated Contacts, IDC Cap, connector dust cover UL Listed. ANSI/TIA 1096-A, ANSI/TIA 568.2-D, ISO/IEC 11801 Class D, PoE: IEEE 802.3bt Type 1. w/6-Color Snap-On ID Bars Included. 1EA/Bag, 25/Pack
Main Features
- Cat5e UTP 90° White Keystone
- 110 Style RJ45 Jack, 8P8C
- 50µ Gold Plated Contacts
- Includes IDC Cap and connector dust cover
- UL Listed for safety
- ANSI/TIA 1096-A, ANSI/TIA 568.2-D compliant
- ISO/IEC 11801 Class D certified
- PoE: IEEE 802.3bt Type 1 compatible
- Includes 6-Color Snap-On ID Bars

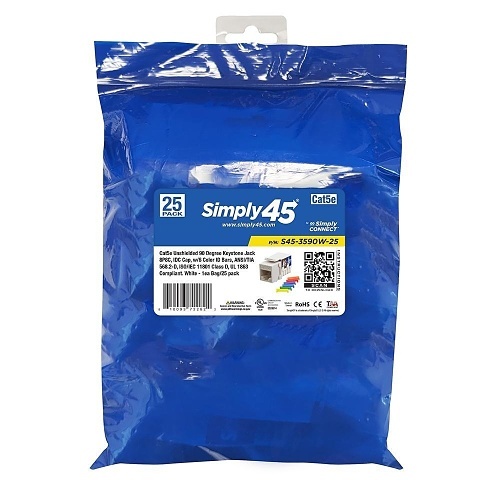

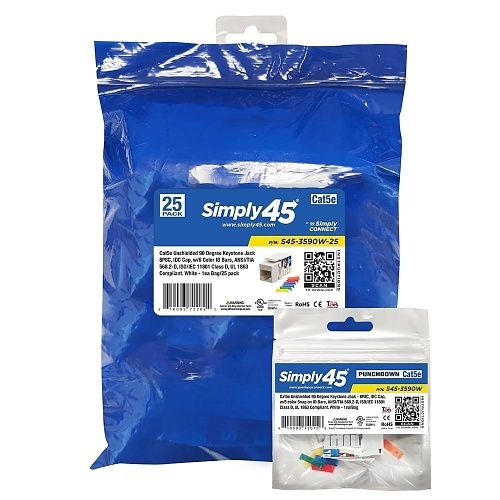

- Pack of 25, 1EA/Bag
General Information
Name: Simply45 S45-3590W-25 Keystone Jack, CAT5E UTP 90-Degree, White
Category: Simply45, Data Comm & Networking, Cable Connectors, Inserts & Adapters
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number G0-S45359W25 Brand Name Simply45 Manufacturer Simply45 Manufacturer Part Number S45-3590W-25 Product Line Simply45 Product Model S45-3590W-25 Product Series Keystone
Contact Plating Gold
ADI Part Number Replaces G0-S4550W25 Model Number Replaces S45-3590W-25
Color White Height 0.75"
Length 1.25"
Limited Warranty Lifetime
Environmental Certification UL Environmentally Friendly Yes Features 50μ gold plated, 90-degree, includes dust cap, ANSI/TIA-1096-A (Formerly FCC part 68), ANSI/TIA-568.2-D (CAT 5E), cUL us listed, Housing abs, UL94v.0 Plenum Rated, IEEE 802.3bt PoE Type 1 (15.4 Watts), ISO/IEC 11801-1 (Class D), Power over HDBaseT PoE (95 Watts), Terminates 24-22AWG solid / 24AWG stranded
